Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: REAR MUFFLER

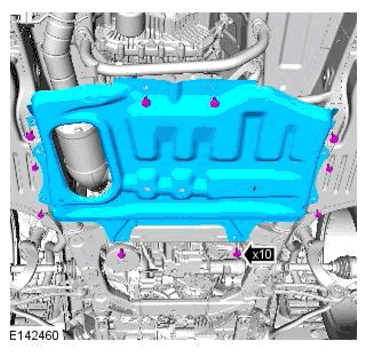

  3. G11699297

    Torque Specifications:

    M6 10 Nm

    M10 60 Nm

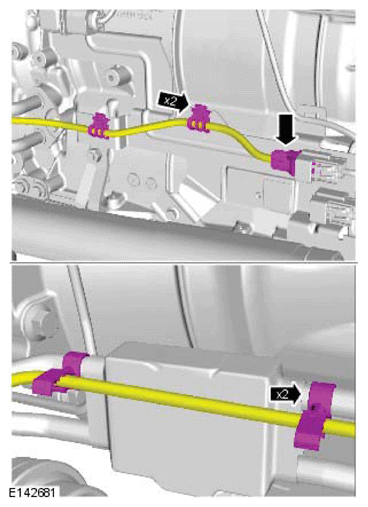

  4. G11769028

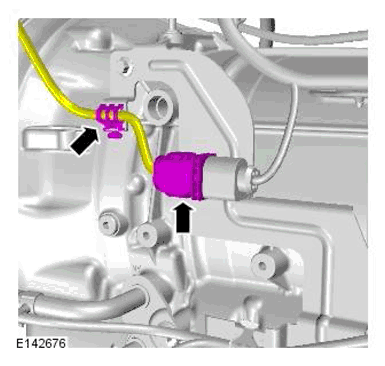

  5. G11699299
  6. NOTE: Cut the RH exhaust pipe at the location marked on the pipe.

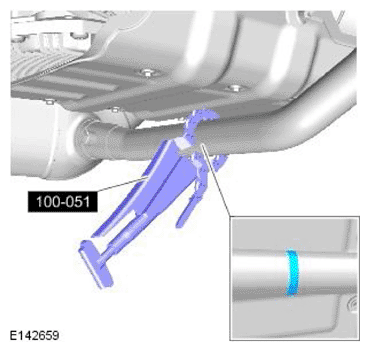

    G11708021

    Special Tool(s): 100-051

  7. CAUTION: Using a suitable transmission stand support the exhaust system.

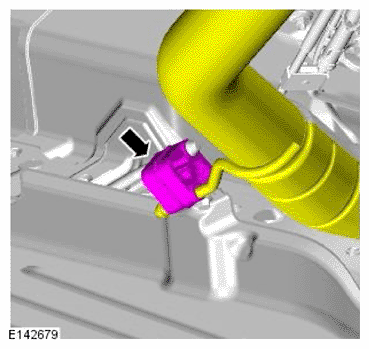

    G11708022
  8. NOTE: Install a new gasket.

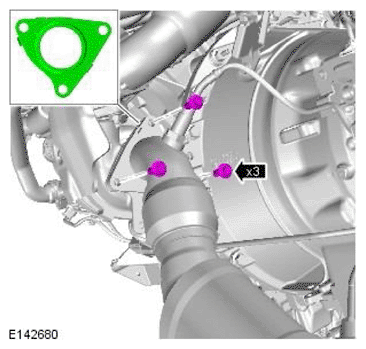

    G11708023

    Torque Specification: 28 Nm

  9. NOTE: This step requires the aid of another technician.

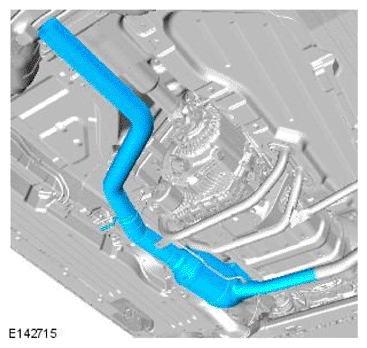

    G11708024
  10. NOTE: Do not disassemble further if the component is removed for access only.

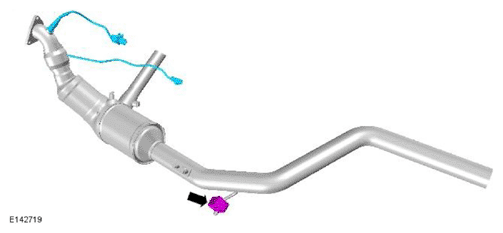

    G11708025

    Torque Specifications:

    Temperature sensor 35 Nm

    Heated Oxygen sensor 48 Nm
