Removal And Installation: Removal

  1. Remove the crash pad lower panel.

    (Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

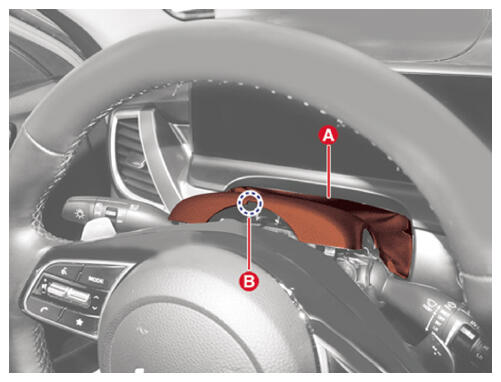

  2. Remove the crash pad center garnish (A) by using the service hole (B).
    G16425484Courtesy of KIA MOTORS AMERICA, INC.
    G16425485Courtesy of KIA MOTORS AMERICA, INC.

    Information

    IMPORTANT:

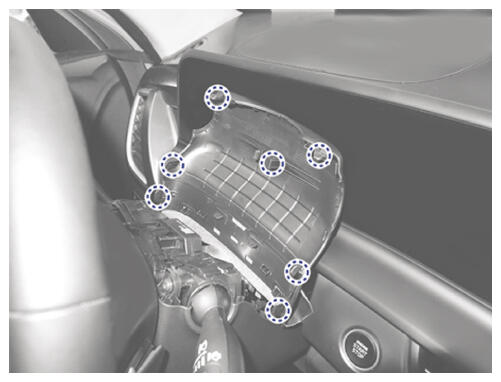

    Clip position:

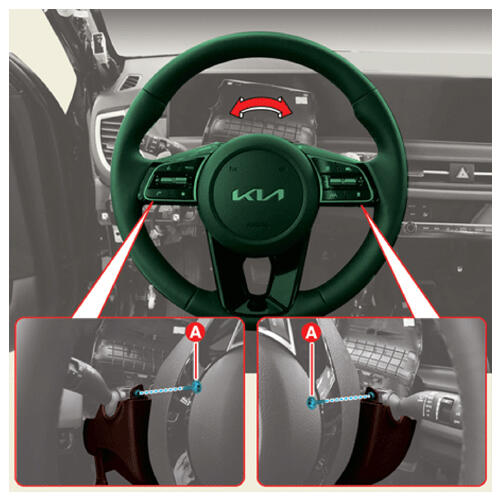

  3. Turn the steering wheel left and right to remove the screws (A).
    G16425486Courtesy of KIA MOTORS AMERICA, INC.

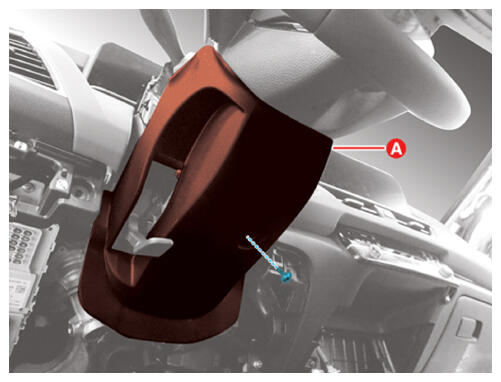

  4. Remove the steering column shroud panel (A) after removing the screw.
    G16425487Courtesy of KIA MOTORS AMERICA, INC.
