Crash Pad Lower Panel

  1. Disconnect the battery negative (-) terminal.
  2. Remove the crash pad side cover [Driver's Side].

    (Refer to Crash Pad - "CRASH PAD SIDE COVER ")

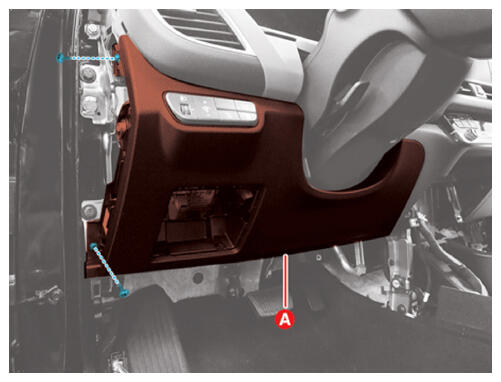

  3. Remove the crash pad lower panel (A) after removing the screws.
    G16425468Courtesy of KIA MOTORS AMERICA, INC.
    G16425469Courtesy of KIA MOTORS AMERICA, INC.

    Information

    IMPORTANT:

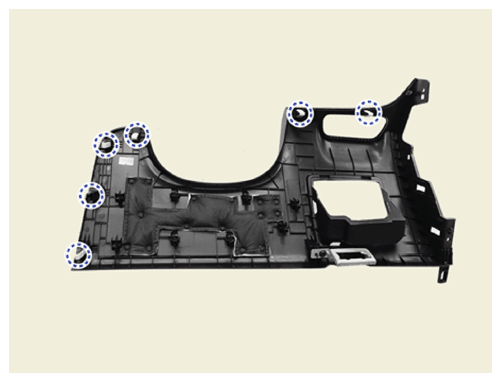

    Clip position:

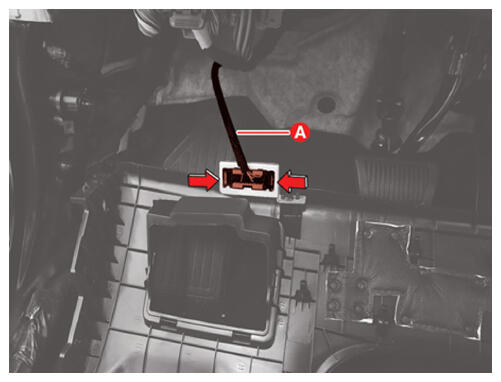

  4. Disconnect the diagnostic tool connector (A).
    G16425470Courtesy of KIA MOTORS AMERICA, INC.
