Circuit Inspection

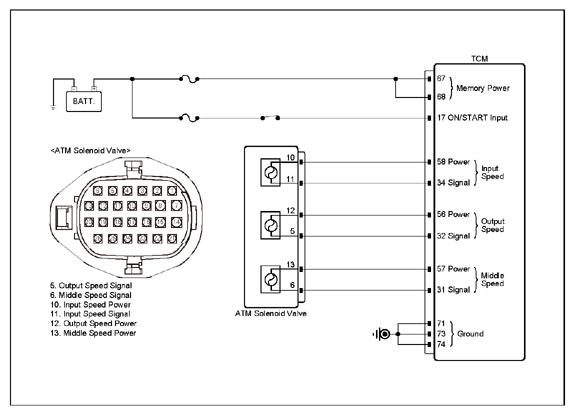

G15727893Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Disconnect the electrical connector(s) from the concerned component.
  2. Ignition "ON".
 ATM solenoid valve connector 13 (power) Chassis ground - Approx. 9V
  1. Disconnect the electrical connector(s) from the concerned component.
  2. Ignition "ON".
 ATM solenoid valve connector 6 (signal) Chassis ground - Approx. 0V
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
 ATM solenoid valve connector 13 (power) Chassis ground - ∞ (infinity)Ω
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
 ATM solenoid valve connector 6 (signal) Chassis ground - ∞ (infinity)Ω

Good

No Good
