Component Inspection

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification

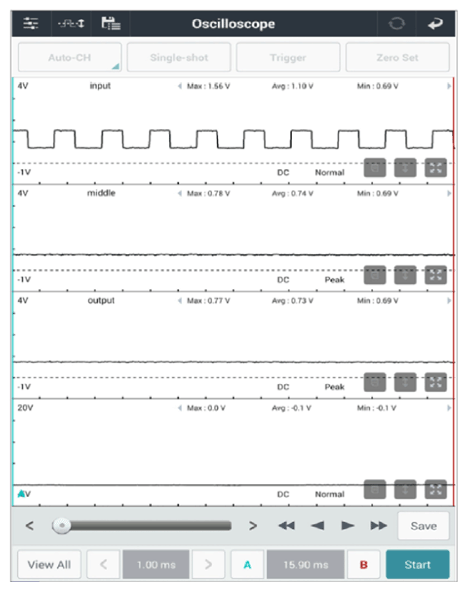

Engine "ON". Gear lever position at "P".	ATM solenoid valve connector	11 (signal)	ATM solenoid valve connector	6 (signal)	Fig.1
Engine "ON". Gear lever position at "P".	ATM solenoid valve connector	5 (signal)	-	-	Fig.1

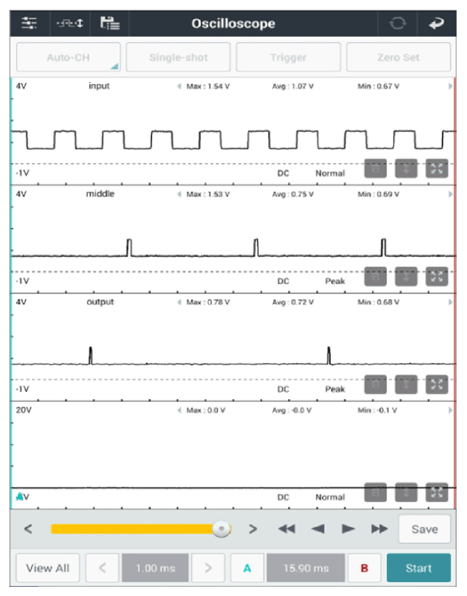

Engine "ON". Gear lever position at "D".	ATM solenoid valve connector	11 (signal)	ATM solenoid valve connector	6 (signal)	Fig.2
Engine "ON". Gear lever position at "D".	ATM solenoid valve connector	5 (signal)	-	-	Fig.2

G15727894

Courtesy of KIA MOTORS AMERICA, INC.

G15727895

Courtesy of KIA MOTORS AMERICA, INC.

Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace TCM and then Go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace middle speed sensor and then Go to "VERIFICATION OF REPAIR " procedure.
