Circuit Inspection: Notes
Charging System Inspection
CAUTION:
* Please be careful handling the SRSCM. The BPT, CAB and SAB can be operated when the SRSCM has an impact and rotation when ignition is "ON". It may be cause serious risk.
| Inspection Item | Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | |||

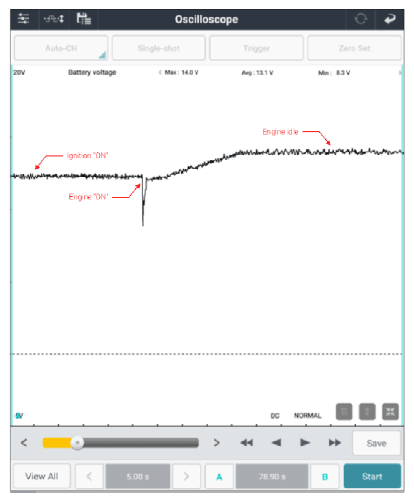

| Charging voltage inspection (Alternator) |
|
12V battery | (+) | 12V battery | (-) | Fig.1 |
Good
- Go to "MAIN HARNESS CIRCUIT INSPECTION " procedure.
No Good
- Check the charging system and then Go to "VERIFICATION OF REPAIR " procedure.
