Circuit Inspection

G15719588Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON"

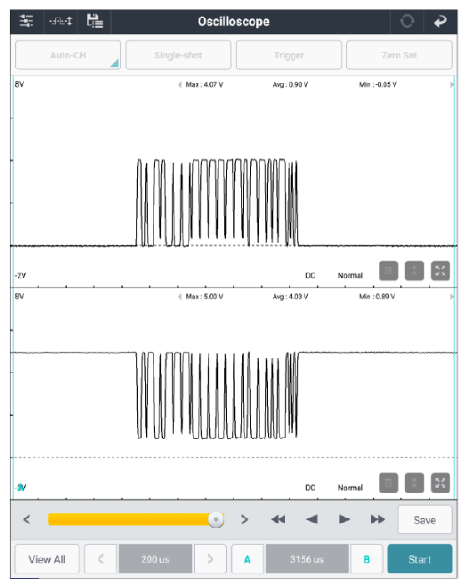

 HUD connector 8 (M-CAN high) Chassis ground - Fig.1 below
HUD connector 9 (M-CAN low) Chassis ground -
G15719589Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
