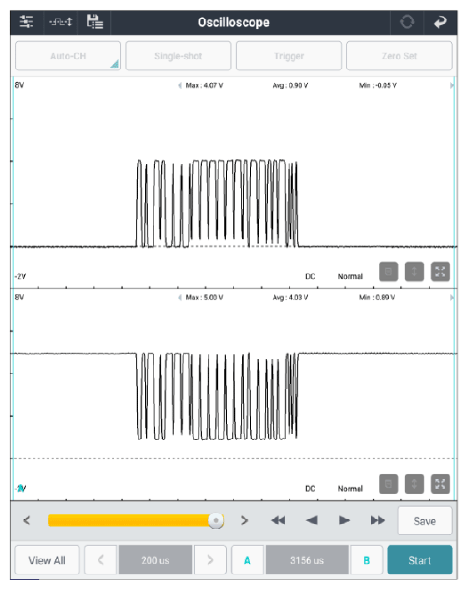

System Inspection

Courtesy of KIA MOTORS AMERICA, INC.

Good

• Disconnect M-CAN communication units one by one and monitor DTC to find the cause.
• If the DTC erase, substitute with a known-good unit and check for proper operation. If the problem is corrected, replace the unit and go to "Verification Of Repair " procedure.

No Good

• Check for open, short to battery and short to ground in M-CAN line.
• Repair as necessary and go to "Verification Of Repair " procedure.
