Removal & Installation: Installation

  1. Disconnect the negative battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

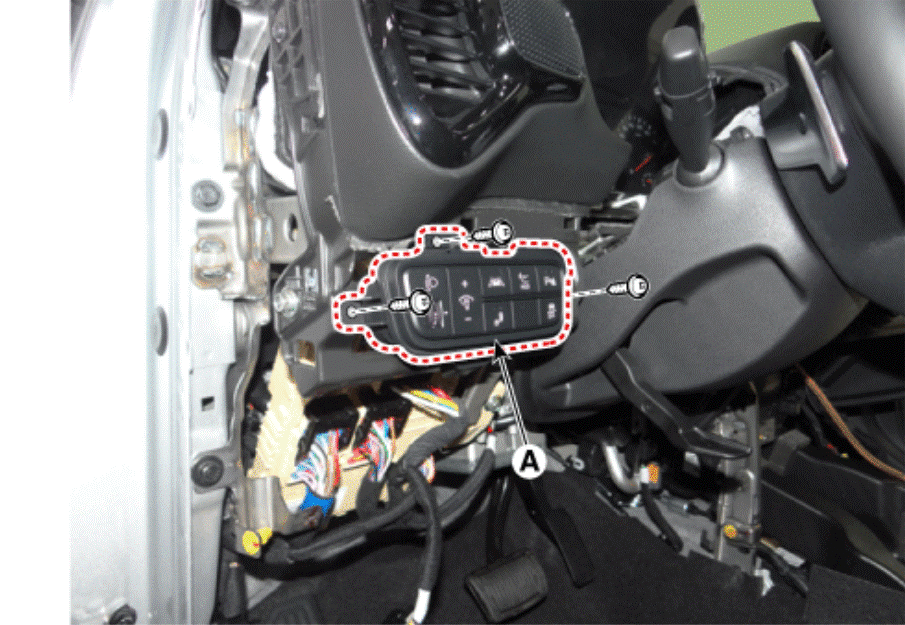

  3. Remove the side crash pad switch panel (A) after loosening the mounting screws.
    G15709493Courtesy of KIA MOTORS AMERICA, INC.

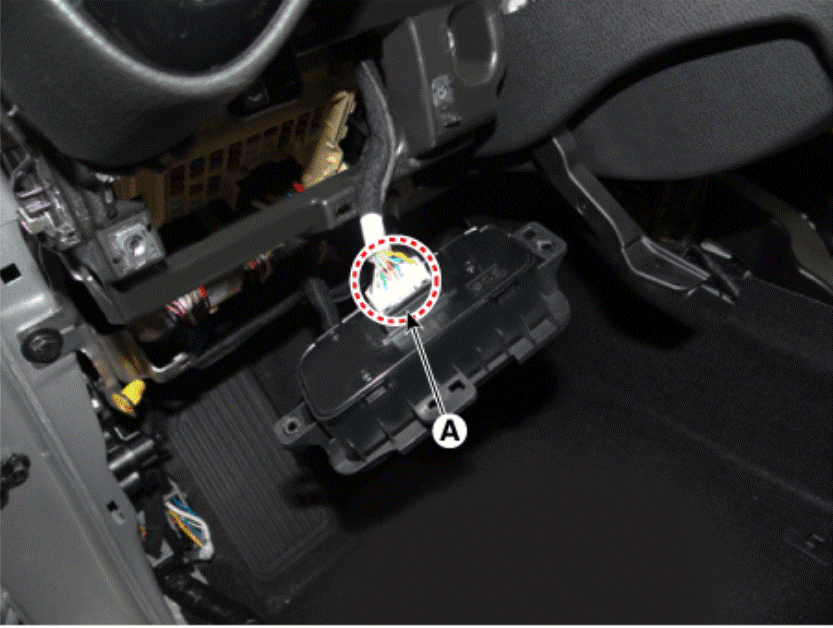

  4. Disconnect the side crash pad switch connector (A).
G15709494Courtesy of KIA MOTORS AMERICA, INC.
