Crash Pad Lower Panel

  1. Remove the driver's side crash pad side cover.

    (Refer to Crash Pad - "CRASH PAD SIDE COVER ")

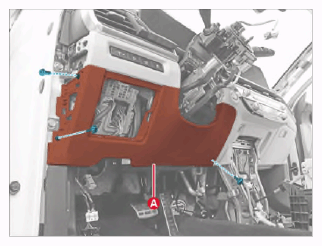

  2. Remove the crash pad lower panel (A) after removing the screws.
    G15709733Courtesy of KIA MOTORS AMERICA, INC.
    G15709734Courtesy of KIA MOTORS AMERICA, INC.

    Information

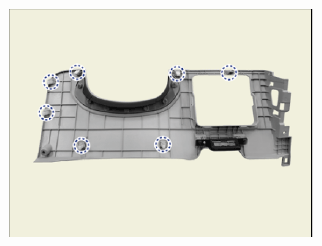

    Clip position:

    G15335368Courtesy of KIA MOTORS AMERICA, INC.

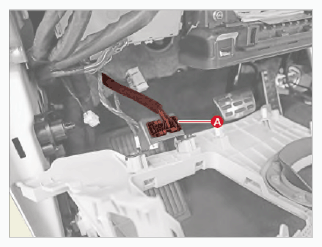

  3. Disconnect the diagnostic connector (A).
    G15709735Courtesy of KIA MOTORS AMERICA, INC.
