Multimedia Jack Cable

  1. Remove the main crash pad assembly.

    (Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

  2. Remove the AVNT head unit.

    (Refer to AVNT System - "AVNT HEAD UNIT ")

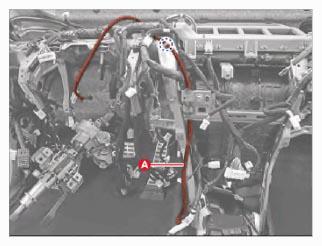

  3. Remove the multimedia jack cable (A).
    G15710064Courtesy of KIA MOTORS AMERICA, INC.

    Information

    Clip position:

G15335386Courtesy of KIA MOTORS AMERICA, INC.
