Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

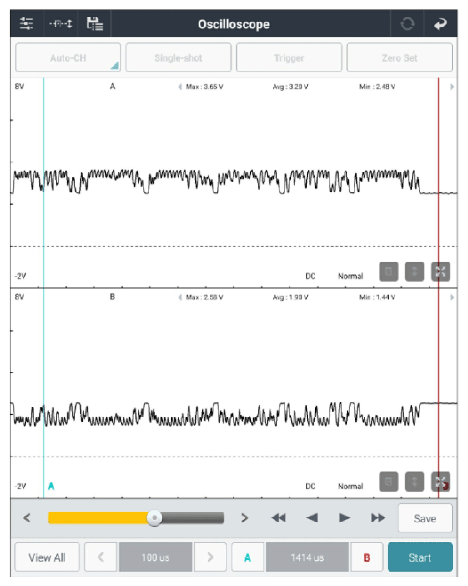

SVMS ECU harness connector | 18 (C-CAN high) | Chassis ground | - | Fig.1 |
| SVMS ECU harness connector | 18 (C-CAN high) | Chassis ground | - | ||
| SVMS ECU harness connector | 18 (C-CAN high) | Cluster harness connector | 32 (C-CAN high) | Approx. below 1Ω | |
| SVMS ECU harness connector | 6 (C-CAN low) | Cluster harness connector | 33 (C-CAN low) | Approx. below 1Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then Go to "VERIFICATION OF REPAIR " procedure.
