Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

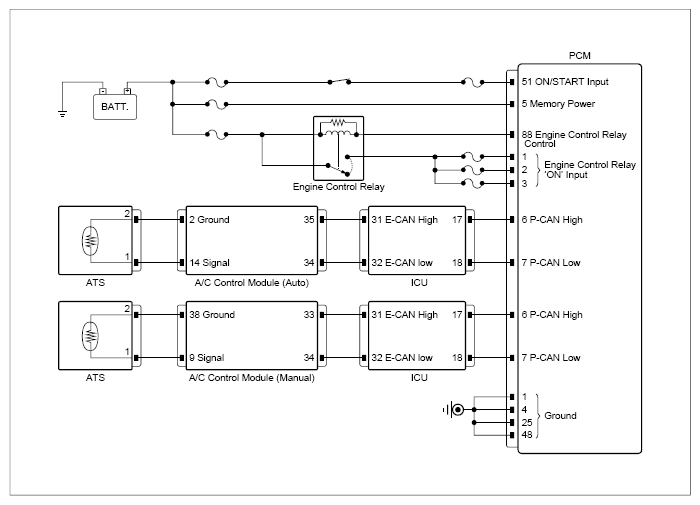

G13679834

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	ATS connector	2 (ground)	Chassis ground	-	Approx. below 1Ω
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	ATS connector	1 (signal)	Chassis ground	-	Approx. 5V
Ignition "ON".	PCM connector	6 (P-CAN high)	Chassis ground	-	Fig.1
Ignition "ON".	PCM connector	7 (P-CAN high)	Chassis ground	-	Fig.1

G13679835

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
