Circuit Inspection
| Module Circuit Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
OBC connector | 2, 17, 25 (power) | Chassis ground | - | B+ |
|
OBC connector | 1, 9 (ground) | Chassis ground | - | Approx. below 1Ω |
Good
- Go to "CAN Communication Line Inspection" procedure.
No Good
- Repair open or short in ground circuit and then go to "Verification Of Repair " procedure.
| CAN Communication Line Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
OBC connector | 8 (G-CAN high) |

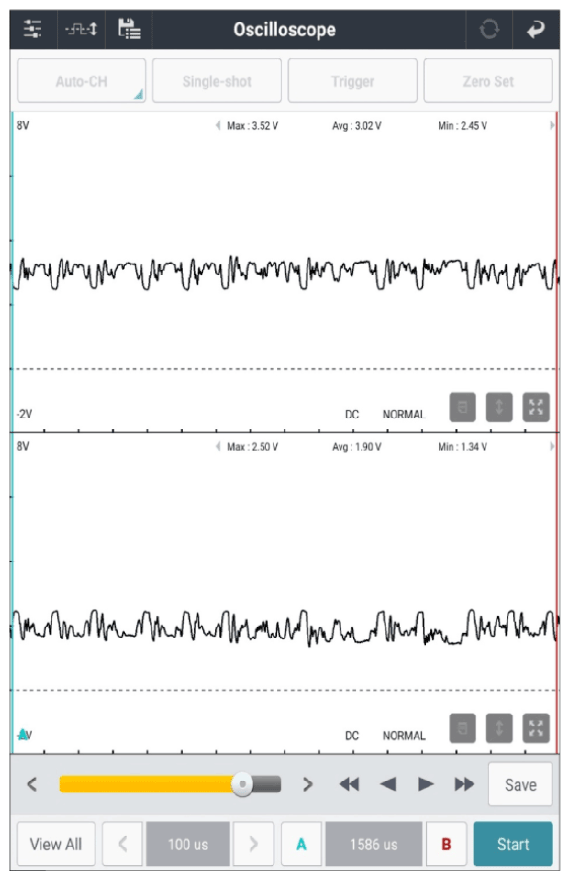

Chassis ground | - | Fig.1 |
| OBC connector | 16 (G-CAN low) | Chassis ground | - | ||
|
OBC connector | 8 (G-CAN high) | OBC connector | 16 (G-CAN low) | Approx. 60Ω |
| ICU (component side) | 29 (G-CAN high) | ICU (component side) | 30 (G-CAN low) |
Approx. 120Ω | |
| BMS (component side) | 11 (G-CAN high) | BMS (component side) | 10 (G-CAN low) | Approx. 120Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace ICU or BMS then go to "Verification Of Repair " procedure.
