Monitor DTC Status

Inspection Condition	Inspection Procedure	Reference

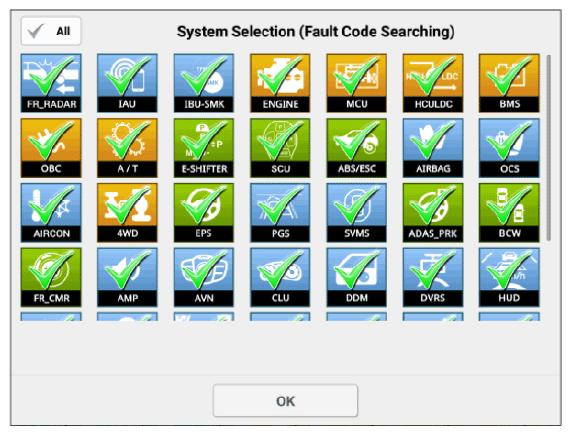

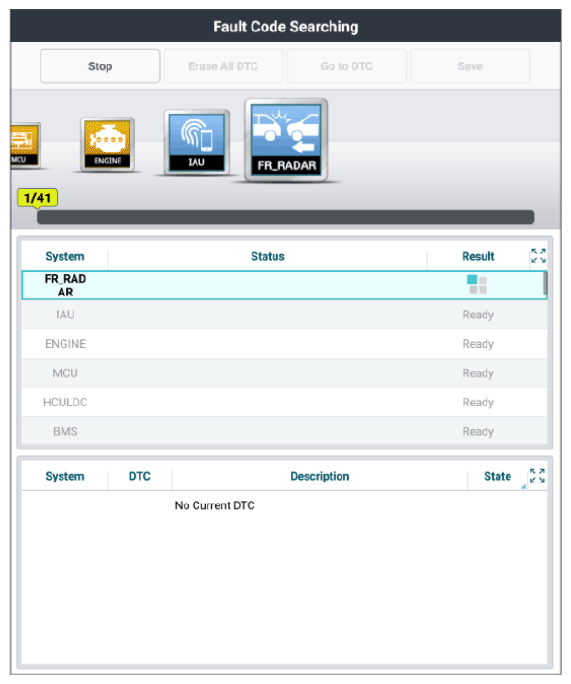

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Ignition "ON". Select correct Vehicle Model, Year, and Engine Type with KDS. Select CAN related all system. (Fig.1) Select "Fault Code Searching". (Fig.2)	Fig.1 to 2

G14962948

Courtesy of KIA MOTORS AMERICA, INC.

G14962949

Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

Repair any CAN related DTCs first and then carefully re-do this troubleshooting guide steps.
If problem still occurs, go to "WIRING INSPECTION " procedure.

History/Pending Fault

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and then go to "Verification Of Repair " procedure.
