Monitor DTC Status

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect the charging connector to charge. (Continuous charging is required to check over temperature)
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

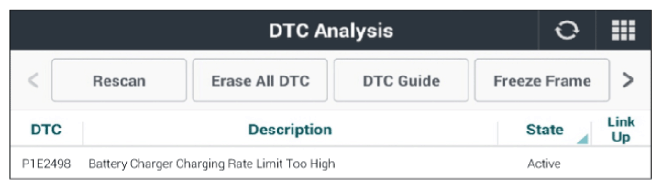

 Fig.1
G14962945Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

History/Pending Fault
