Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect the charging connector to charge.
  2. Connect KDS to Data Link Connector (DLC).
  3. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.
 Fig.1 to 5
G14962939Courtesy of KIA MOTORS AMERICA, INC.

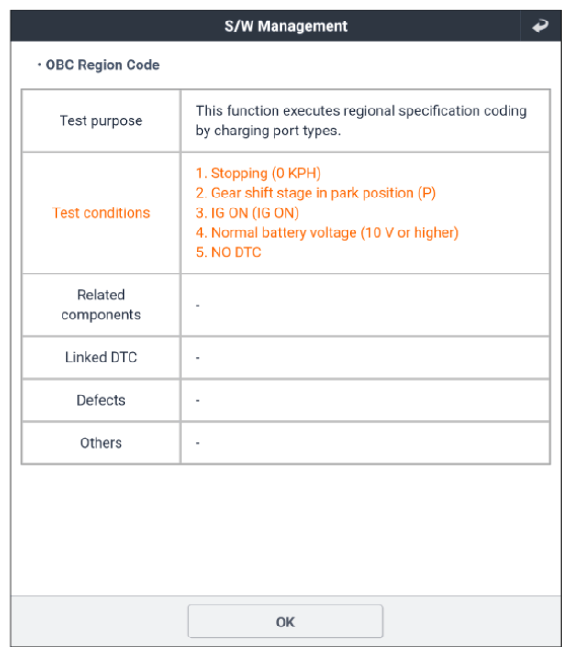

G14962940Courtesy of KIA MOTORS AMERICA, INC.

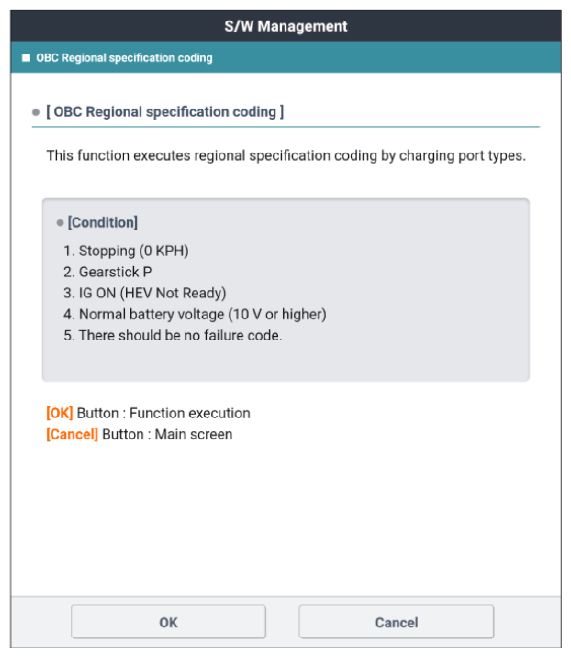

G14962941Courtesy of KIA MOTORS AMERICA, INC.

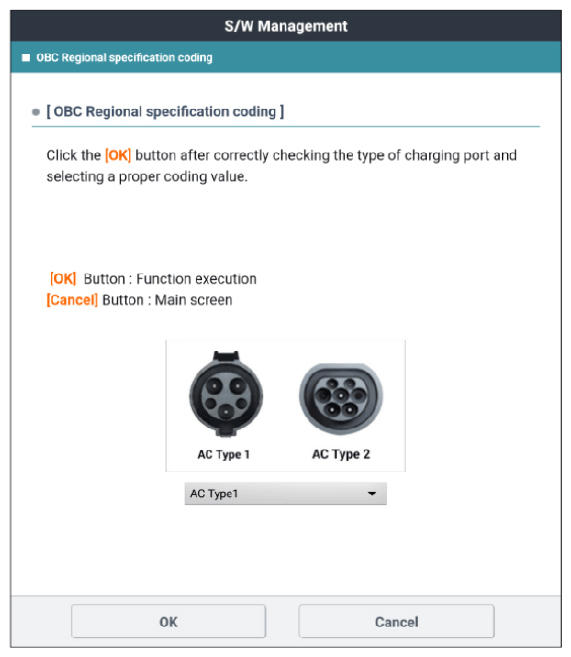

G14962942Courtesy of KIA MOTORS AMERICA, INC.
G14962943Courtesy of KIA MOTORS AMERICA, INC.
