Monitor DTC Status
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

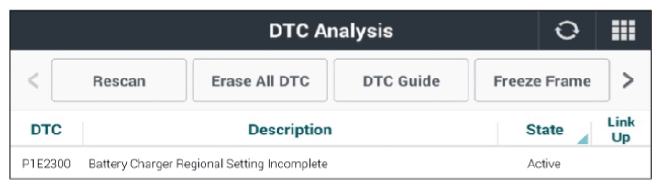

Fig.1 |
Active Fault
- Perform the OBC charge port setting ("5 Socket", "7 Socket") using the KDS. (Vehicle S/W Management)
- In case of present DTC again at the time of recharging, replace the OBC and then go to "Verification Of Repair " procedure.
History/Pending Fault
- Fault is intermittent caused by malfunction in external power system or not erasing "History DTC". go to "Verification Of Repair " procedure.
