Monitor KDS Data

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect the charging connector to charge.
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Monitor parameter in "Current Data" with KDS.
 Fig.1 to 2

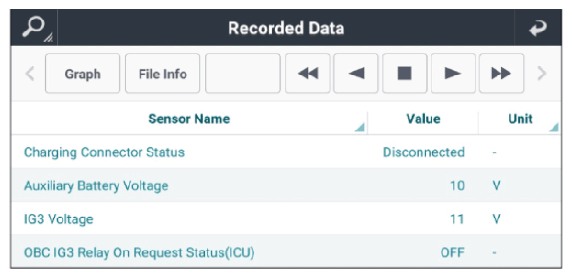

G14962923Courtesy of KIA MOTORS AMERICA, INC.

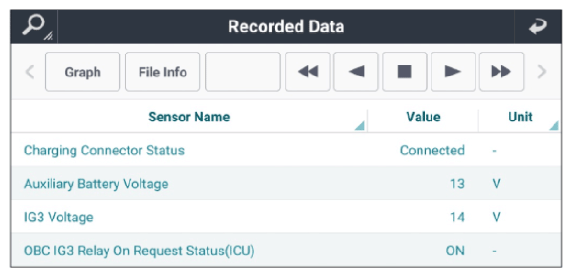

G14962924Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
