Monitor DTC Status

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. After the last charge, do not charge for about 2 hours.
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Connect the charging connector to charge.
  4. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

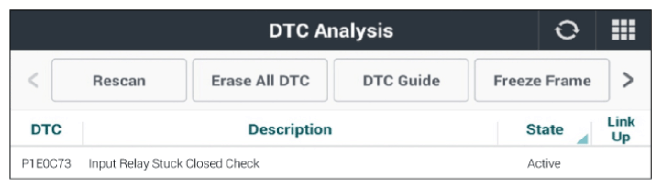

 Fig.1
G14962913Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

History/Pending Fault
