Monitor DTC Status

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect the charging connector to charge.
  2. Connect KDS to "Data Link Connector (DLC)".
  3. Monitor parameter in "Current Data" with KDS.

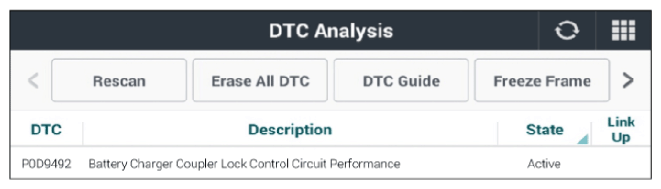

 Fig.1
G14962834Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

History/Pending Fault
