Monitor KDS Data
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

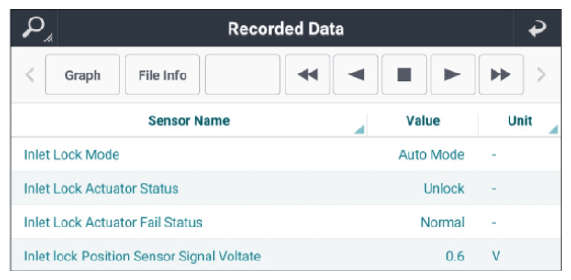

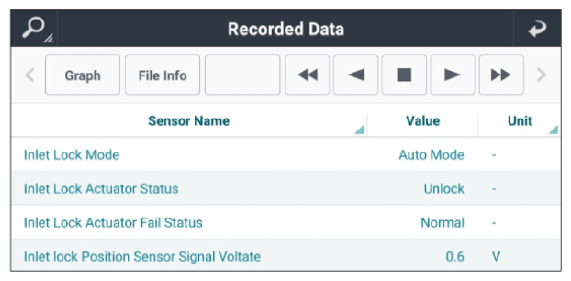

Fig.1 to 2 |
Good
- Fault is intermittent caused by poor contact in the part's and/or connector or was repaired and ECU memory was not cleared.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Check the EVSE and AC power-related parts of the charging station.
No Good
- Go to "WIRING INSPECTION " procedure.
