Info Code of Freeze Frame Data
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

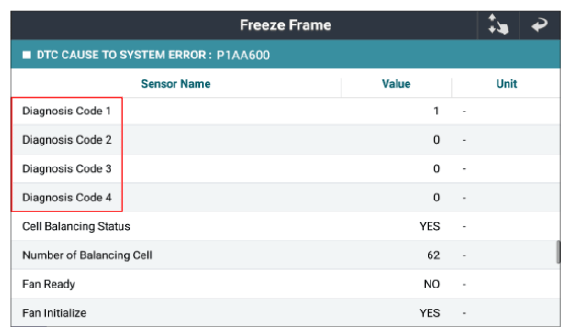

Table1 Fig.1 |
DIAGNOSTIC CODE DESCRIPTION
| Separation | Info Code | Remark |
|---|---|---|
| Save data when failure occurs | Info Code 1 = Airbag H/wire duty | The information can be confirmed with the phrase |
| Info Code 2 = Airbag CAN receive or not (No: 0, Yes: 1) |
Good
- Go to "MONITOR KDS DATA " procedure.
No Good
- Check whether the fault code occurs while the vehicle driving. If fault code is not generated, check the failure of the other high-voltage components. This failure may be due to noise caused trouble code of the other components. This failure may be due to noise of the other components.
- If state of DTC is present, check "battery cell voltage" of "Current Data" with KDS. If the battery cell voltage is not less than 2V, check the other components.
- If the battery cell voltage is less than 2V at ignition "ON", check connection status while shaking the connector and wire.
- If current data is not changed during check wire and connectors, replace the BMU and Go to "Verification Of Repair " procedure.
- If current data is changed during check wire and connectors, replace the wire and Go to "Verification Of Repair " procedure.
