Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| CAN Communication Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|

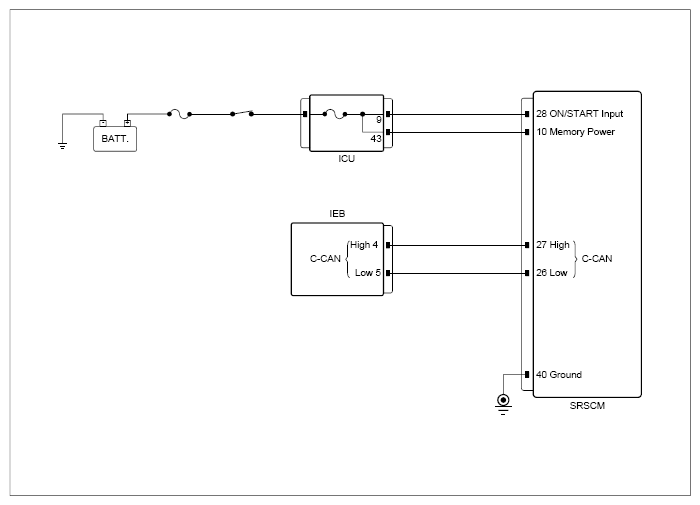

SRSCM connector | 27 (C-CAN high) | Chassis ground | - | Fig.1 |
| SRSCM connector | 26 (C-CAN low) | Chassis ground | - | ||
|
IEB connector | 4 (C-CAN high) | IEB connector | 5 (C-CAN low) | Approx. 60Ω |
|
SRSCM (component side) | 27 (C-CAN high) | SRSCM (component side) | 26 (C-CAN low) | Approx. 120Ω |
| ICU (component side) | 20 (C-CAN high) | ICU (component side) | 19 (C-CAN low) | Approx 120Ω | |
|
SRSCM connector | 27 (C-CAN high) | Chassis ground | - | ∞ (infinity)Ω |
| SRSCM connector | 26 (C-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
| IEB connector | 4 (C-CAN high) | Chassis ground | - | ∞ (infinity)Ω | |
| IEB connector | 5 (C-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
| SRSCM connector | 27 (C-CAN high) | IEB connector | 4 (C-CAN high) | Approx. below 1Ω | |
| SRSCM connector | 26 (C-CAN low) | IEB connector | 5 (C-CAN low) | Approx. below 1Ω | |
Good
- Check sensor connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary and then go to "BODY SENSOR RESET " and "Verification Of Repair" procedure.
No Good
- Repair as necessary and then go to "BODY SENSOR RESET " and "Verification Of Repair" procedure.
