Body Sensor Reset

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Body Sensor Reset" in "Vehicle S/W management".
 Fig.1 to 6

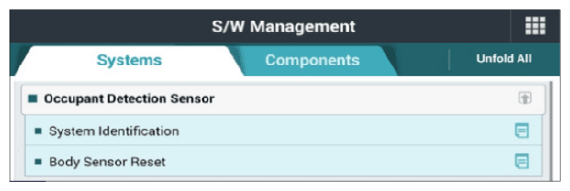

G14962787Courtesy of KIA MOTORS AMERICA, INC.

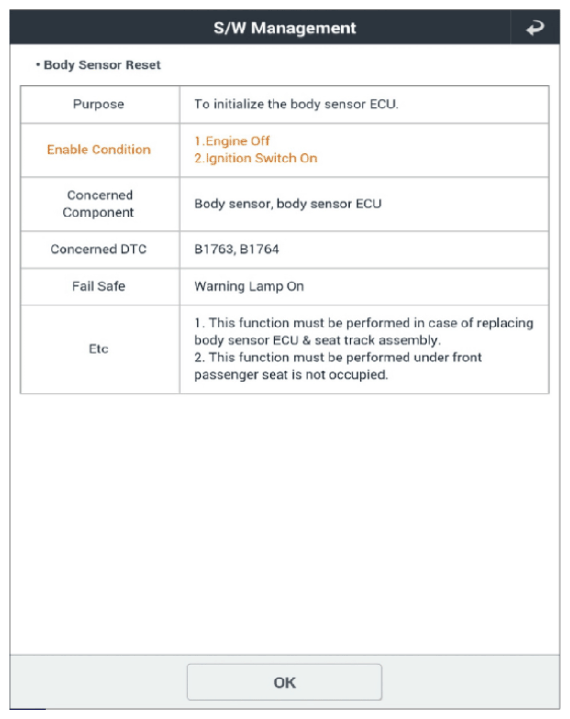

G14962788Courtesy of KIA MOTORS AMERICA, INC.

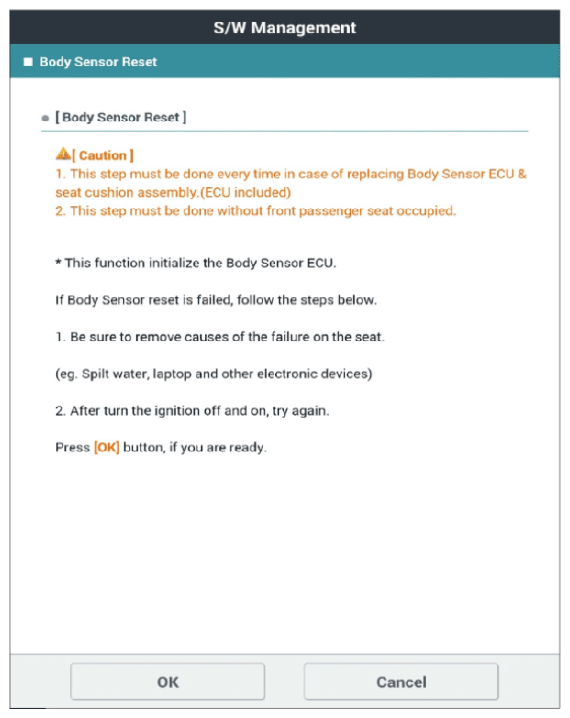

G14962789Courtesy of KIA MOTORS AMERICA, INC.

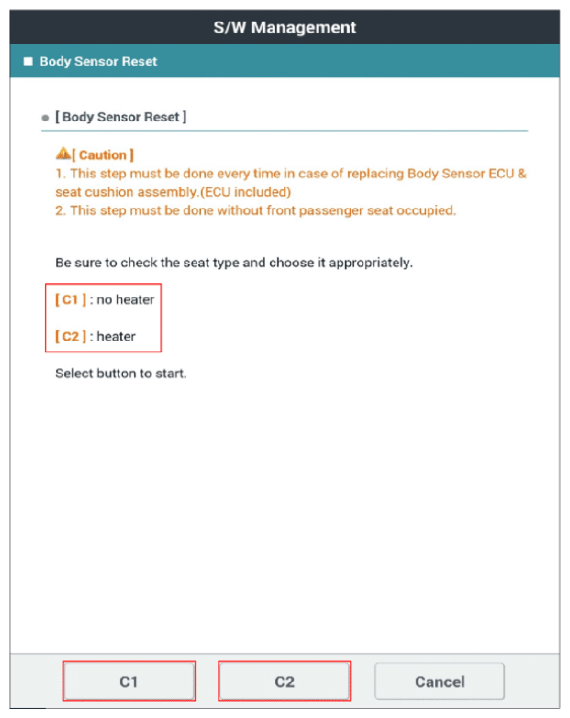

G14962790Courtesy of KIA MOTORS AMERICA, INC.

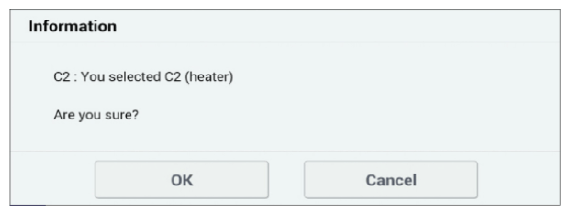

G14962791Courtesy of KIA MOTORS AMERICA, INC.

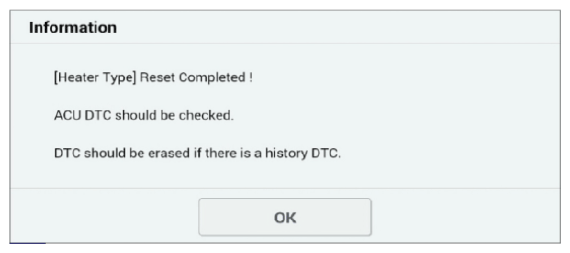

G14962792Courtesy of KIA MOTORS AMERICA, INC.
