Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to "Data Link Connector (DLC)".
  2. Perform the "Steering Angle Sensor (SAS) Calibration" procedure during the S/W Management of the brake control system.
 Fig.1 to 5

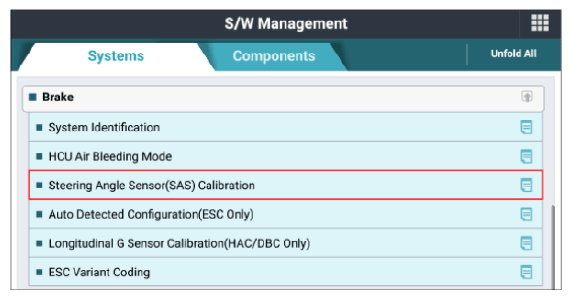

G14941577Courtesy of KIA MOTORS AMERICA, INC.

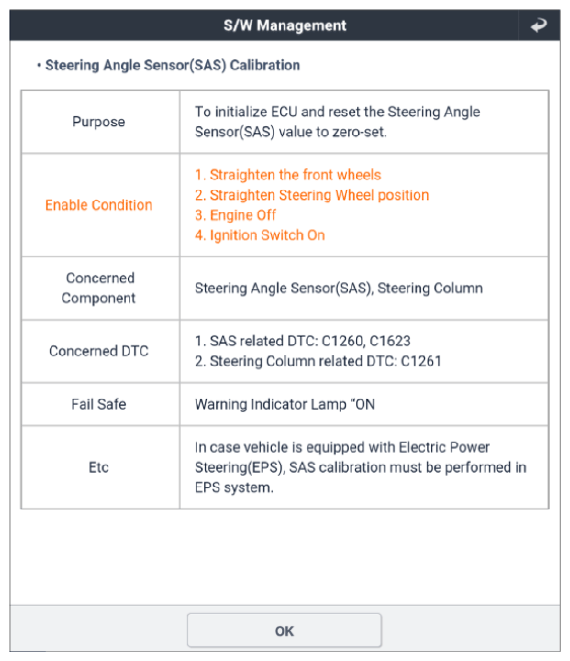

G14941578Courtesy of KIA MOTORS AMERICA, INC.

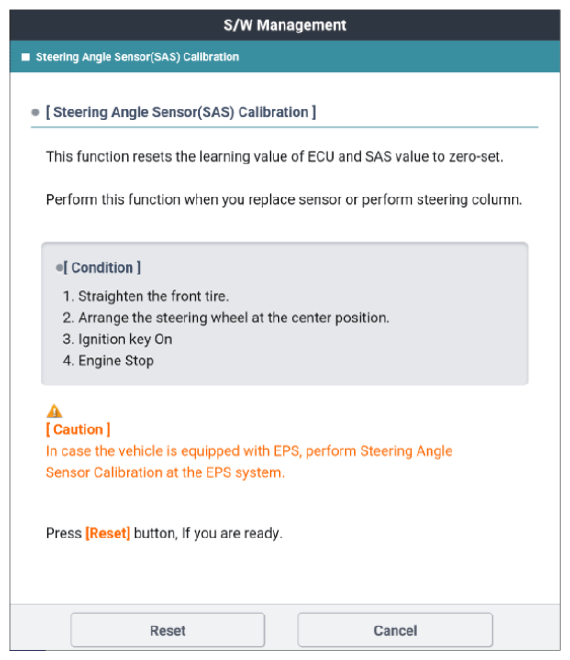

G14941579Courtesy of KIA MOTORS AMERICA, INC.

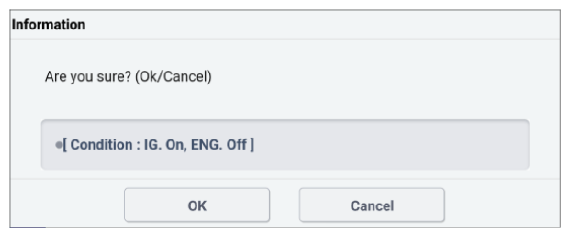

G14941580Courtesy of KIA MOTORS AMERICA, INC.

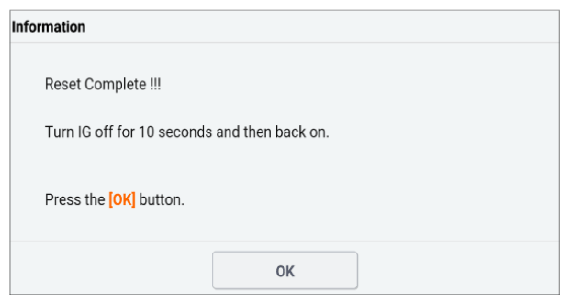

G14941581Courtesy of KIA MOTORS AMERICA, INC.
