Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to "Data Link Connector (DLC)".
  2. Perform the "Steering Angle Sensor (SAS) Calibration" procedure during the S/W Management of the brake control system.
 Fig.1 to 5

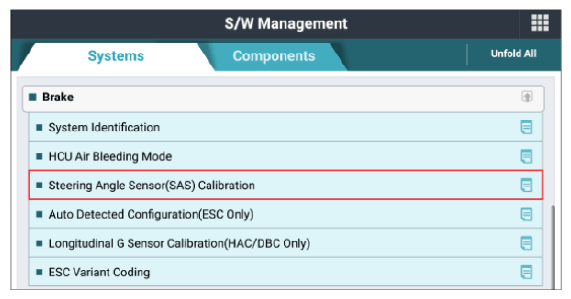

G14941433Courtesy of KIA MOTORS AMERICA, INC.

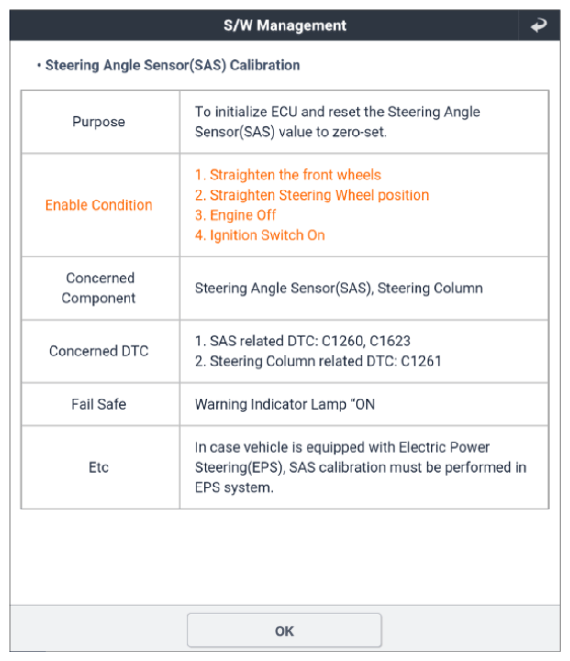

G14941434Courtesy of KIA MOTORS AMERICA, INC.

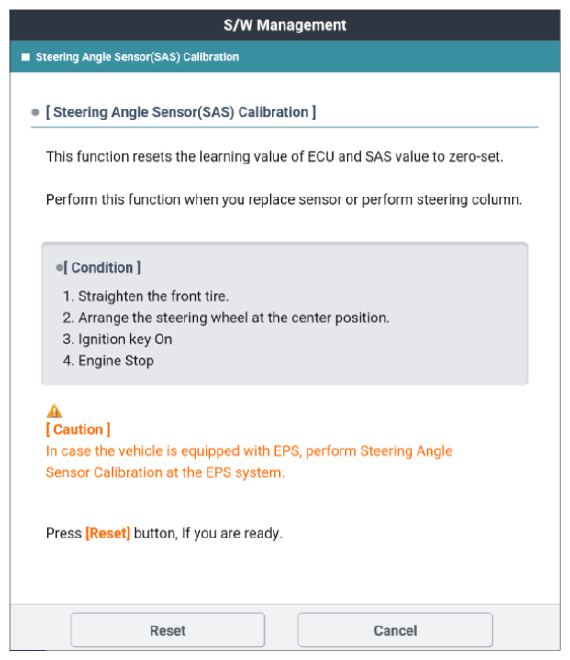

G14941435Courtesy of KIA MOTORS AMERICA, INC.

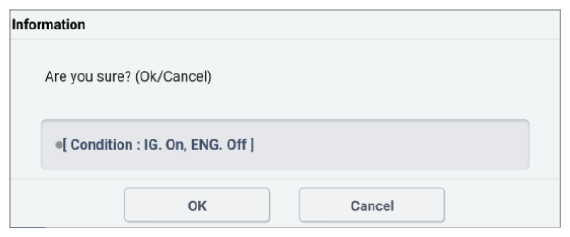

G14941436Courtesy of KIA MOTORS AMERICA, INC.

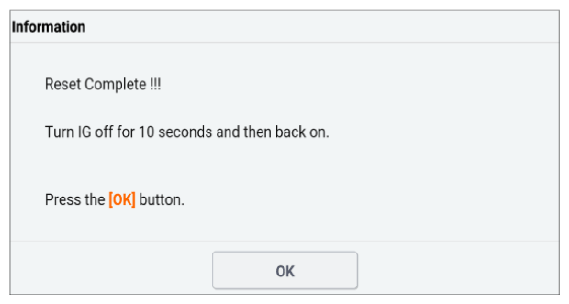

G14941437Courtesy of KIA MOTORS AMERICA, INC.
