Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
HPCU connector | 4, 5, 6, 73 (power) | Chassis ground | - | B+ |
|
HPCU connector | 1, 2, 3 (ground) | Chassis ground | - | Approx. below 1Ω |
|

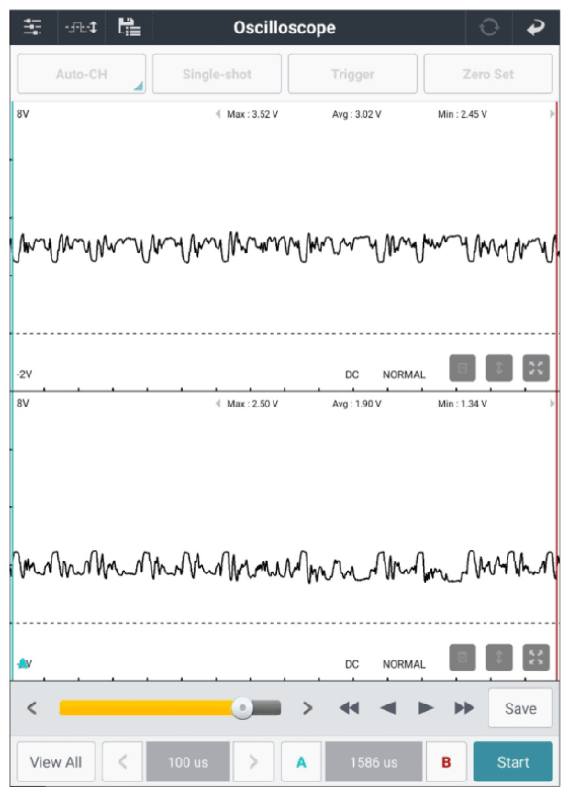

ICU connector | 20 (C-CAN high) | Chassis ground | - | Fig.1 |
| ICU connector | 19 (C-CAN low) | Chassis ground | - | ||
| HPCU connector | 90 (G-CAN high) | Chassis ground | - | Fig.2 | |
| HPCU connector | 91 (G-CAN low) | Chassis ground | - | ||
Good
- Go to "C-CAN Inspection" procedure.
No Good
- Repair as necessary and then Go to "Verification Of Repair " procedure.
| C-CAN Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
MDPS unit connector | 7 (C-CAN high) | MDPS unit connector | 8 (C-CAN low) | Approx. 60Ω |
| MDPS unit connector | 7 (C-CAN high) | ICU connector | 20 (C-CAN high) | Approx. below 1Ω | |
| MDPS unit connector | 8 (C-CAN low) | ICU connector | 19 (C-CAN low) | Approx. below 1Ω | |
Good
- Go to "G-CAN Inspection" procedure.
No Good
- Repair open or short in circuit and then Go to "Verification Of Repair " procedure.

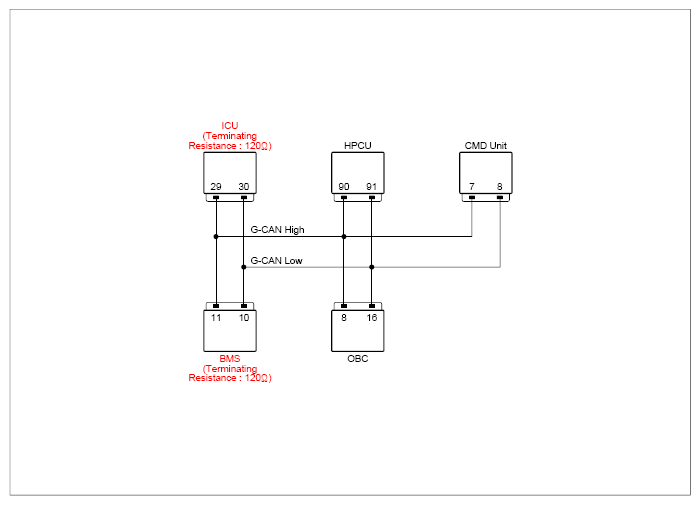

| G-CAN Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
HPCU connector | 90 (G-CAN high) | HPCU connector | 91 (G-CAN low) | Approx. 60Ω |
| ICU connector | 29 (G-CAN high) | HPCU connector | 90 (G-CAN high) | Approx. below 1Ω | |
| ICU connector | 30 (G-CAN low) | HPCU connector | 91 (G-CAN low) | Approx. below 1Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
