Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to "Data Link Connector (DLC)".
  2. Perform the "Set the steering feel torque to zero" procedure during the S/W Management of the Motor Driven Power Steering system.
 Fig.1 to 4

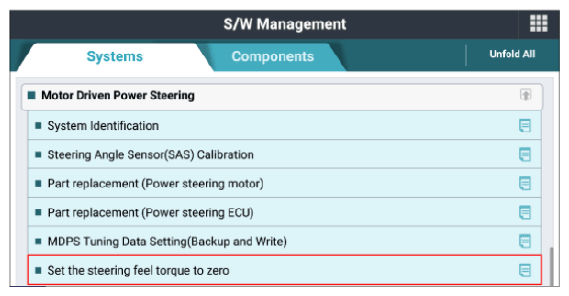

G14941291Courtesy of KIA MOTORS AMERICA, INC.

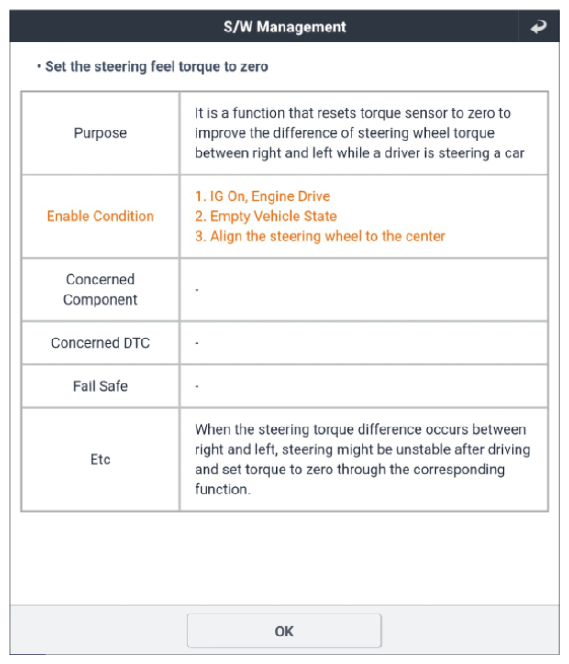

G14941292Courtesy of KIA MOTORS AMERICA, INC.

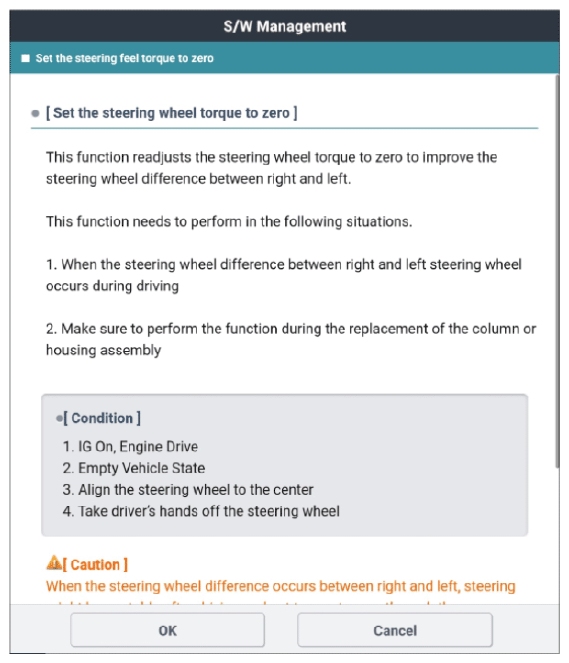

G14941293Courtesy of KIA MOTORS AMERICA, INC.

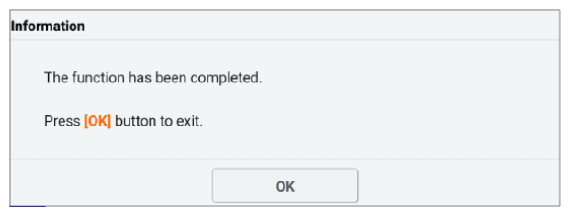

G14941294Courtesy of KIA MOTORS AMERICA, INC.
