Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to "Data Link Connector (DLC)".
  2. Perform the "Steering Angle Sensor (SAS) Calibration" procedure during the S/W Management of the brake control system.
 Fig.1 to 5

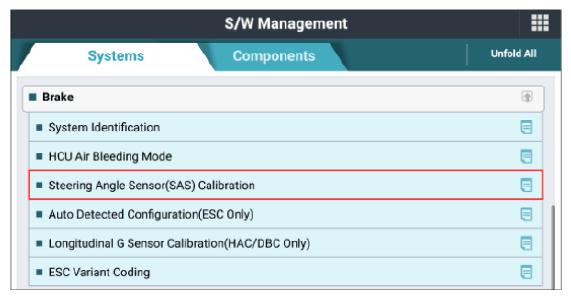

G14941255Courtesy of KIA MOTORS AMERICA, INC.

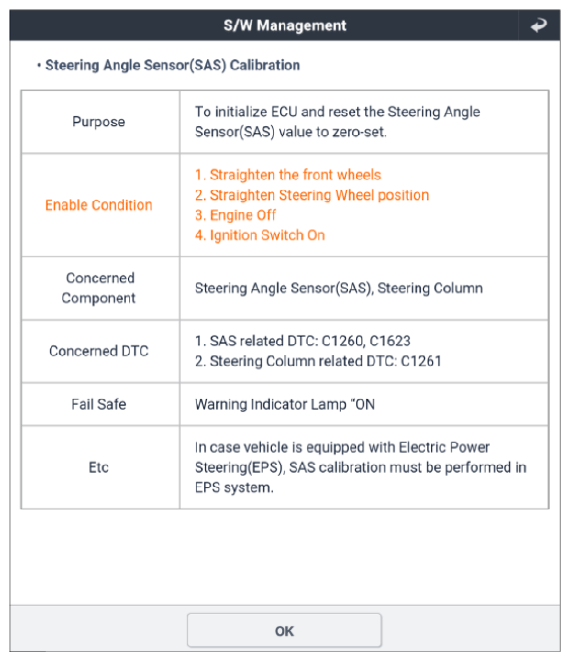

G14941256Courtesy of KIA MOTORS AMERICA, INC.

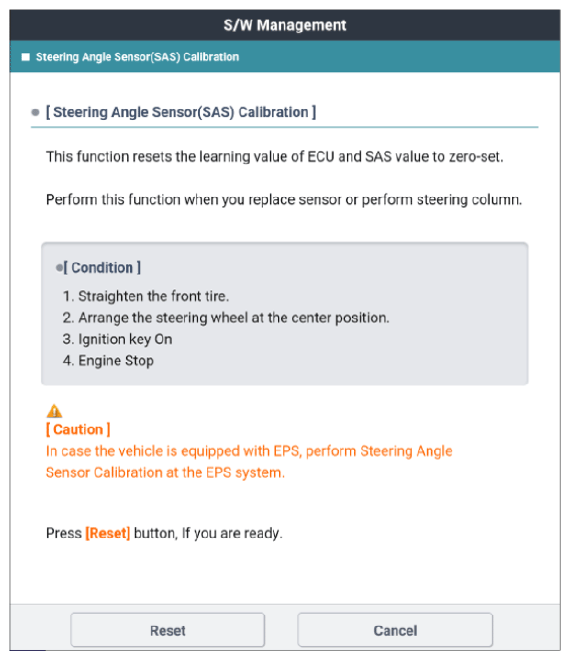

G14941257Courtesy of KIA MOTORS AMERICA, INC.

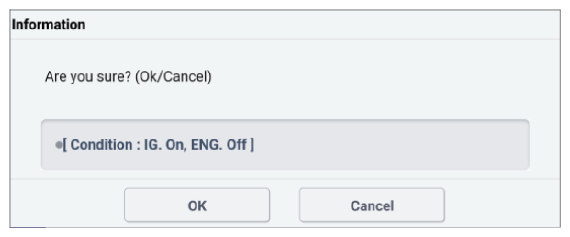

G14941258Courtesy of KIA MOTORS AMERICA, INC.

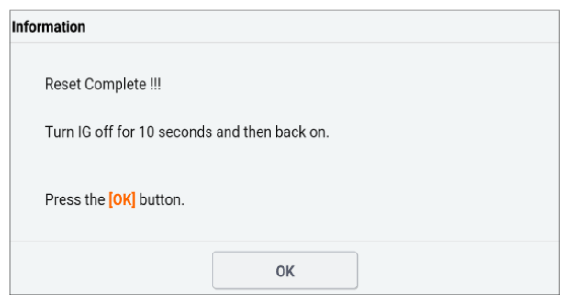

G14941259Courtesy of KIA MOTORS AMERICA, INC.
