Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to "Data Link Connector (DLC)".
  2. Perform the "Steering Angle Sensor (SAS) Calibration" procedure during the S/W Management of the brake control system.
 Fig.1 to 5

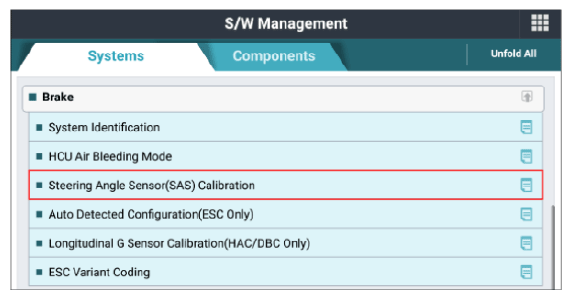

G14941245Courtesy of KIA MOTORS AMERICA, INC.

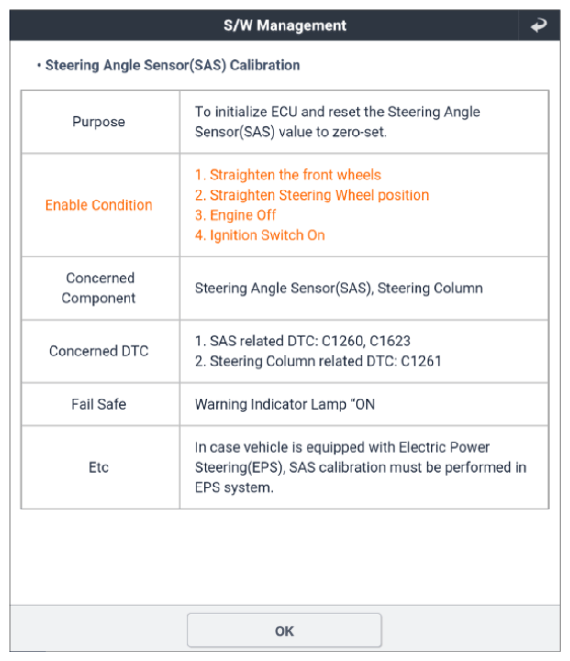

G14941246Courtesy of KIA MOTORS AMERICA, INC.

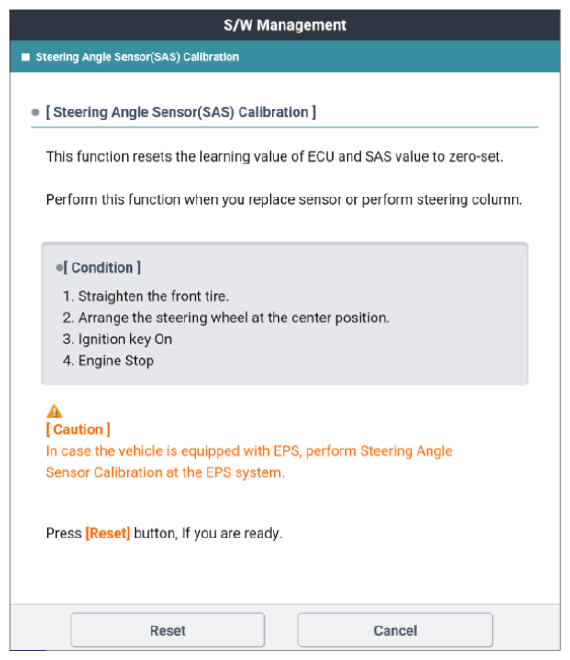

G14941247Courtesy of KIA MOTORS AMERICA, INC.

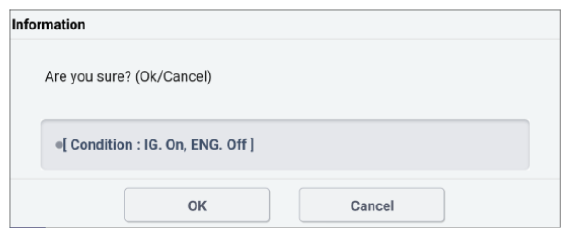

G14941248Courtesy of KIA MOTORS AMERICA, INC.

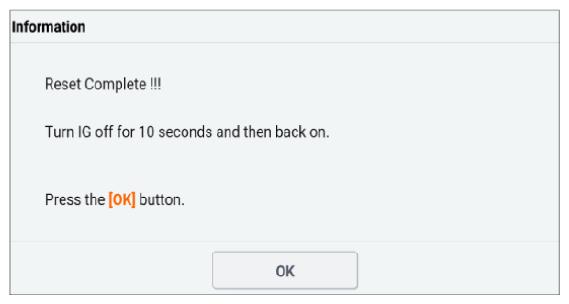

G14941249Courtesy of KIA MOTORS AMERICA, INC.
