Monitor KDS/GDS Data
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

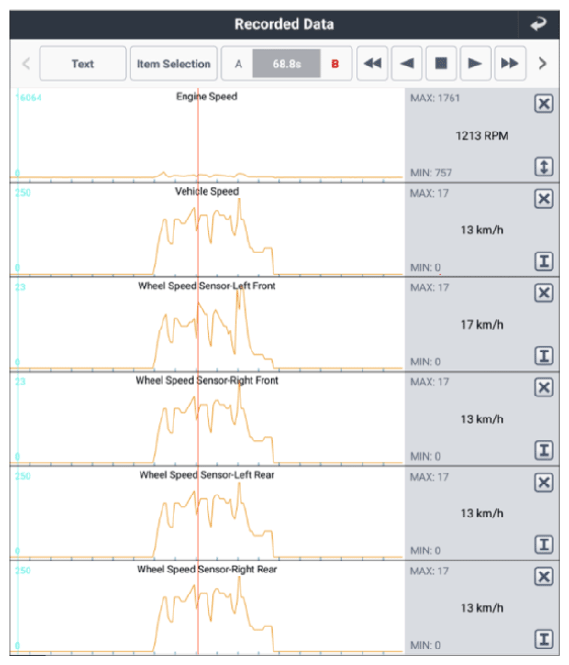

Fig.1 |
Good
- It may be a fault code that has not been erased from the memory of the MDPS since it was repaired due to a problem in the past. After clearing the fault codes in the past, perform the "Verification Of Repair " procedure.
- If the sensor data related to the speed of the HECU system is verified as normal, but the DTC is not continuously cleared, the "Wiring Inspection" procedure is carried out.
No Good
- If a fault code related to the wheel speed sensor is expressed in the HECU, repair the related fault first.
- If the sensor data of the wheel speed sensor is poor, check and repair the fault codes (DTC) expressed in the HECU by referring to the "Maintenance Guides" first before performing the "Checking for Faults".
