Monitor DTC Status
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
| 1. Ignition "ON". | 1. Connect KDS to "Data Link Connector (DLC)". 2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS. |

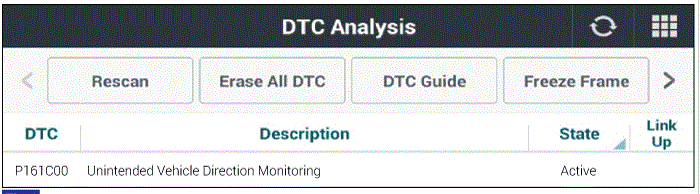

Fig.1 |
Active Fault
• Go to ("Monitor KDS Data ") procedure.
History/Pending Fault
• Fault is intermittent caused by poor contact in the sensor's and/or control module's connector or was repaired and control module's memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
• Repair or replace as necessary and then go to ("Verification Of Repair ") procedure.
