Monitor KDS Data
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
| 1. Engine "ON". 2. Shift lever position "D". 3. Operate the accelerator pedal (engine running) |
1. Connect KDS to "Data Link Connector (DLC)". 2. Monitor parameters in "Current Data" with KDS. |

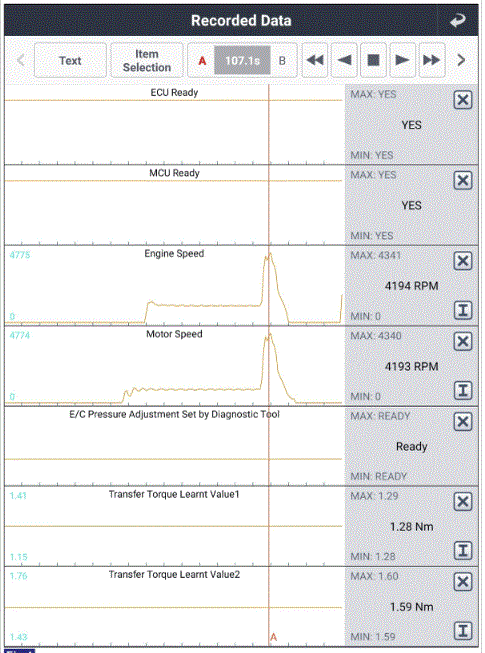

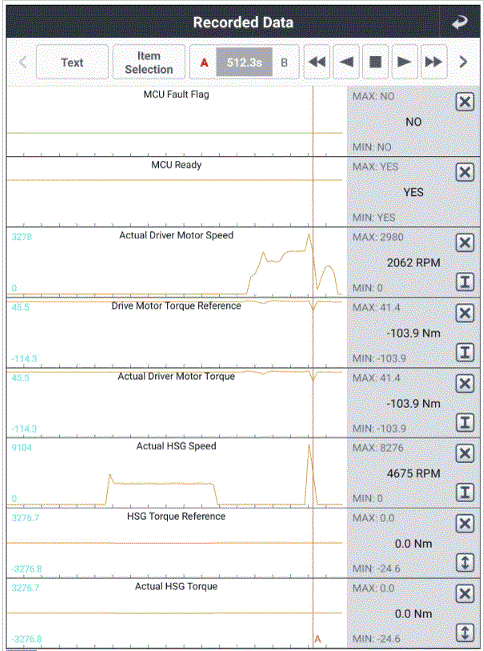

Fig.1 to 2 |
Good
• Fault is intermittent caused by poor contact in the sensor's and/or control module's connector or was repaired and control module's memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
• Repair or replace as necessary and then go to ("Verification Of Repair ")procedure.
No Good
• Replace the HPCU and then go to the ("System Inspection ") procedure and then go to ("Verification Of Repair ").
CAUTION:
• After replacing the LDC (HPCU), it is necessary to operate the "Vehicle S/W Management"
