Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

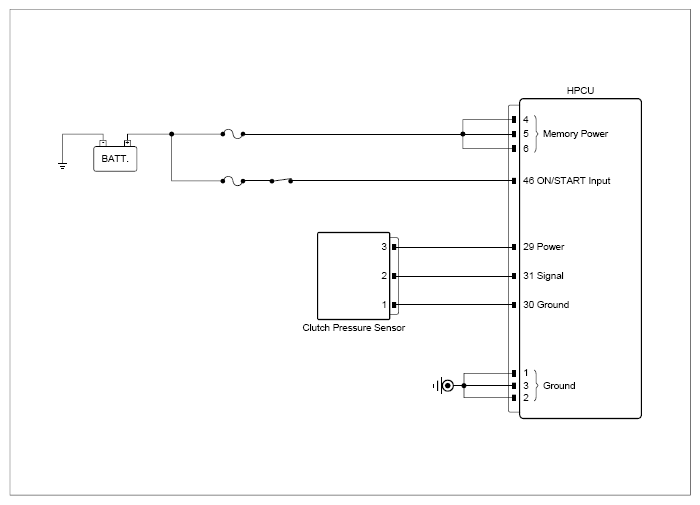

G14961684

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	CPS connector	3 (power)	Chassis ground	-	Approx. 5V
	CPS connector	2 (signal)	Chassis ground	-	Approx. 0V
	CPS connector	1 (ground)	Chassis ground	-	Approx. 0V
Ignition "OFF". Disconnect auxiliary battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	CPS connector	2 (signal)	HPCU connector	31 (signal)	Approx. below 1Ω
	CPS connector	2 (signal)	Chassis ground	-	∞ (infinity)Ω

Good

Repair or replace CPS as necessary and then go to "SYSTEM INSPECTION " procedure. And Go to "Verification Of Repair ".

No Good

Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
