Monitor DTC Status
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

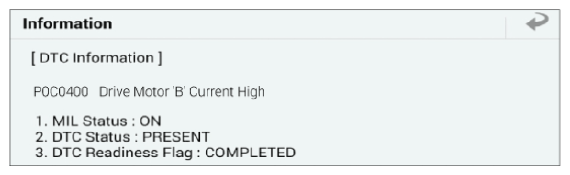

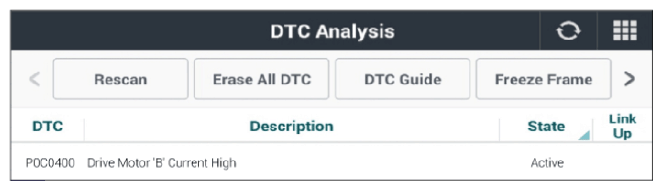

Fig.1 to 2 |
Active Fault
- Perform the "S/W Management" → "HCU/LDC" System → "Engine Test On" for the HSG belt slipping inspection.
- Check the tension of the belt, the adsorption of water or foreign substances, the wear and tear of the belt, and the HSG auto tensioner.
- Go to "MONITOR KDS DATA " procedure.
History/Pending Fault
- If the coil inside the generator (HSG) is momentarily in contact with the vehicle body by the vehicle vibration, it can cause an overcurrent from the generator (HSG).
- Fault is intermittent caused by poor contact in the HPCU's connector/HSG connector was repaired and module memory was not cleared.
- Go to "WIRING INSPECTION " procedure.
