Monitor KDS Data

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference
Ignition "ON". Cluster indicator "READY" ON. Lift the vehicle, shift lever D-range, no brake applied.	Connect KDS to "Data Link Connector (DLC)". Operate vehicle or system in accordance with enable condition in DTC detecting condition. Monitor parameters in "Current Data" with KDS.	Fig.1

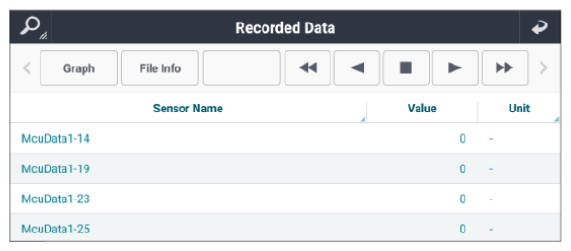

G14962559

Courtesy of KIA MOTORS AMERICA, INC.

Current data	Normal	Abnormal
MCU Data 1-14	0	Value is not 0
MCU Data 1-19	0	Value is not 0
MCU Data 1-23	0	Value is not 0
MCU Data 1-25	0	Value is not 0

Good

Go to "WIRING INSPECTION " procedure.

No Good

Perform the "S/W Management" → "HCU/LDC" System → "Engine Test On" for the HSG belt slipping inspection.
Check the tension of the belt, the adsorption of water or foreign substances, the wear and tear of the belt, and the HSG auto tensioner.
Go to "WIRING INSPECTION " procedure.
