Monitor DTC Status
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

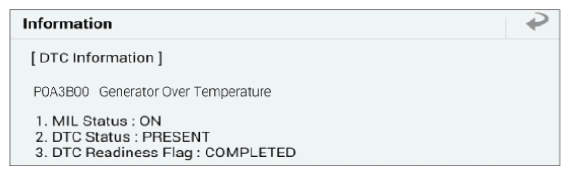

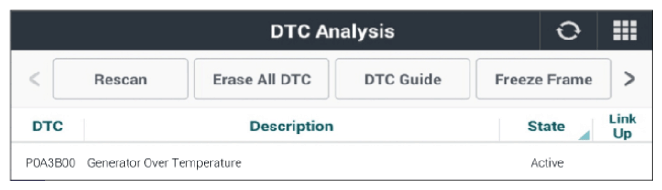

Fig.1 to 2 |
Active Fault
- Go to "MONITOR KDS DATA " procedure.
History/Pending Fault
- This can occur when the MCU's memory is not cleared after the repair.
- Go to "Verification Of Repair " procedure after clear MCU's memory.
- Secondary fault history can be caused by a generator (HSG) cooling failure due to lack of coolant in the PE component or faulty EWP. Check the EWP and coolant and Go to "Verification Of Repair " procedure.
