Monitor KDS Data

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference
Ignition "ON". Cluster indicator "READY" ON. Lift the vehicle, shift lever D-range, no brake applied.	Connect KDS to "Data Link Connector (DLC)". Operate the vehicle or system in accordance for more than 10 minutes with enable condition in DTC Detecting Condition. (more than 20 minutes in winter) Monitor parameters in "Current Data" with KDS.	Fig.1

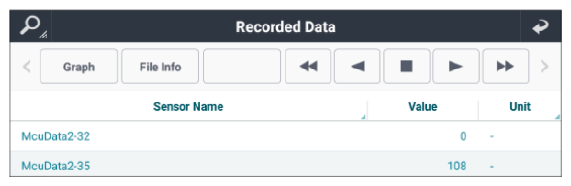

G14962387

Courtesy of KIA MOTORS AMERICA, INC.

Current data	Normal	Abnormal
MCU Data 2-32	0	Value is not 0
MCU Data 2-35	-20 to 185°C (-68 to 365°F)	Over 185°C (365°F)

Good

Secondary fault history can be caused by a generator (HSG) cooling failure due to lack of coolant in the PE component or faulty EWP. Check the EWP and coolant and Go to "Verification Of Repair " procedure.

No Good

Go to "WIRING INSPECTION " procedure.
