Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
ECM connector | 47 (PT Local-CAN1 high) | ECM connector | 69 (PT Local-CAN1 low) | Approx. 120Ω |
| ECM connector | 78 (PT Local-CAN1 high) | ECM connector | 79 (PT Local-CAN1 low) | Approx. 120Ω | |
| ECM connector | 47 (PT Local-CAN1 high) | PT-Local CAN connector | 2 (PT Local-CAN1 high) | Approx. below 1Ω | |
| ECM connector | 69 (PT Local-CAN1 low) | PT-Local CAN connector | 5 (PT Local-CAN1 low) | Approx. below 1Ω | |
| ECM connector | 78 (PT Local-CAN1 high) | PT-Local CAN connector | 2 (PT Local-CAN1 high) | Approx. below 1Ω | |
| ECM connector | 79 (PT Local-CAN1 low) | PT-Local CAN connector | 5 (PT Local-CAN1 low) | Approx. below 1Ω | |
| ECM connector | 47 (PT Local-CAN1 high) | Chassis ground | - | ∞ (infinity)Ω | |
| ECM connector | 69 (PT Local-CAN1 low) | Chassis ground | - | ∞ (infinity)Ω | |
| ECM connector | 78 (PT Local-CAN1 high) | Chassis ground | - | ∞ (infinity)Ω | |
| ECM connector | 79 (PT Local-CAN1 low) | Chassis ground | - | ∞ (infinity)Ω | |
|

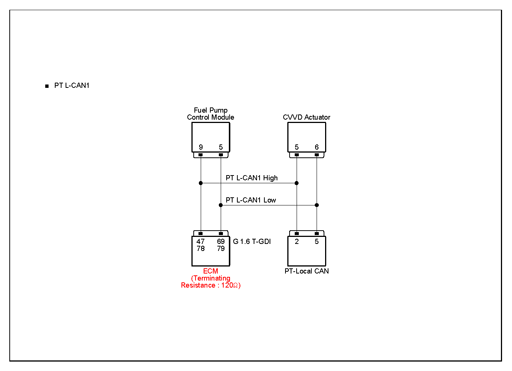

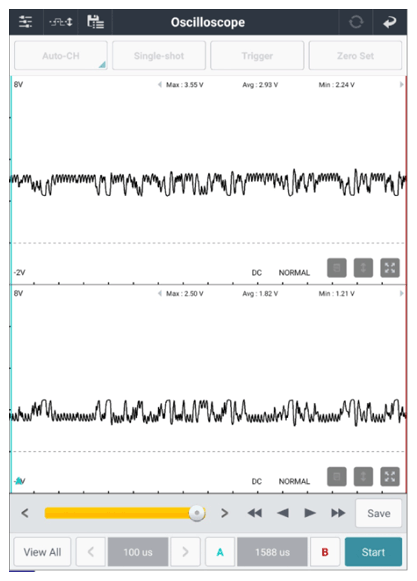

PT-Local CAN connector | 2 (PT Local-CAN1 high) | Chassis ground | - | Fig.1 |
| PT-Local CAN connector | 5 (PT Local-CAN1 low) | Chassis ground | - | ||
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then go to "Verification Of Repair " procedure.
