Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
| 1. Ignition "OFF". 2. Disconnect the electrical connector(s) from the concerned component. 3. Ignition "ON". |

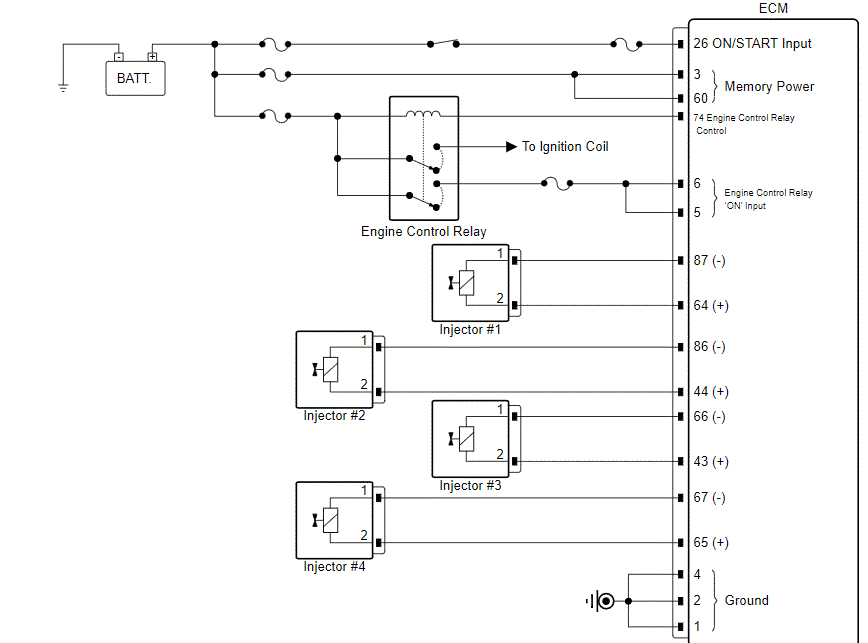

Injector #3 connector | 1 (-) | Chassis ground | - | Approx. 0V |
| Injector #3 connector | 2 (+) | Chassis ground | - | Approx. 8.2V | |
| 1. Ignition "OFF". 2. Disconnect the electrical connector(s) from the concerned component. |
Injector #3 connector | 1 (-) | Chassis ground | 66 (-) | Approx. below 1Ω |
| Injector #3 connector | 2 (+) | Chassis ground | 43 (+) | Approx. below 1Ω | |
Good
• Go to ("Component Inspection ") procedure.
No Good
• Repair or replace as necessary and then, go to ("Verification Of Repair ") procedure.
