Component Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|

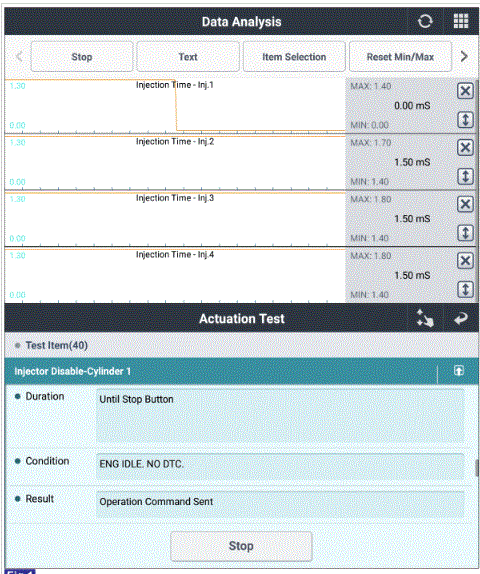

| 1. Engine "ON". | 1. Connect KDS to "Data Link Connector (DLC)". 2. Perform "Actuation Test" of concerned component with KDS. |
Fig.1 |
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||

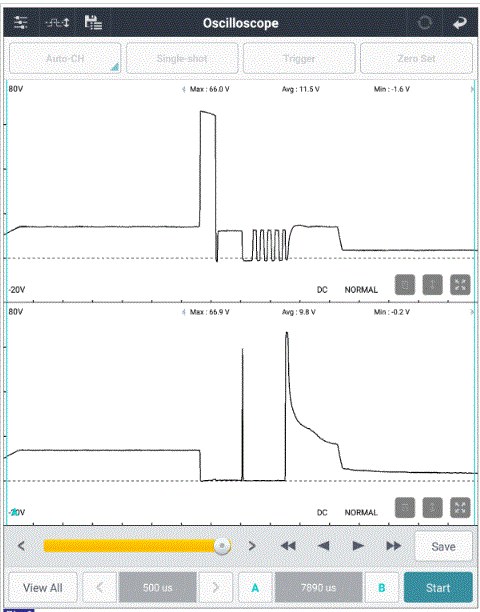

| 1. Engine "ON". | Injector #3 connector | 2 (+) | Chassis ground | - | Fig.2 |
| Injector #3 connector | 1 (-) | Chassis ground | - | ||
Good
• Go to ("Verification Of Repair ") procedure.
No Good
• Carefully re-do this troubleshooting guide steps.
• If no problems were found with the circuits or connectors, replace the injector #1 and go to ("Verification Of Repair ").
