Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

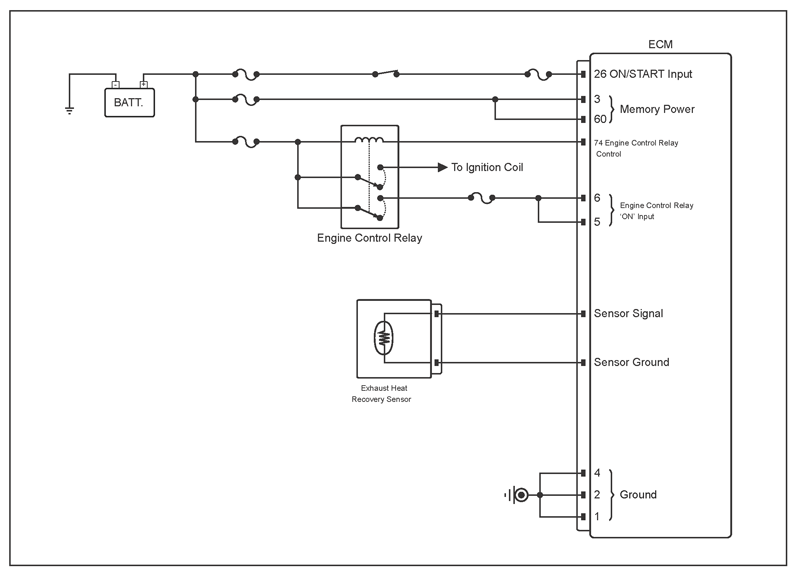

G14943074Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 Exhaust heat recovery sensor connector (signal) Chassis ground - Approx. 5V
Exhaust heat recovery sensor connector (ground) Chassis ground - Approx. 0V
  1. Ignition "OFF".
  2. Disconnect the auxiliary battery (-) terminal.
  3. Disconnect the electrical connector(s) from the concerned component.
 Exhaust heat recovery sensor connector (signal) Chassis ground - ∞ (infinity)Ω

Good

No Good
