CCV Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| CCV Inspection | ||
|---|---|---|
| Inspection Condition | Inspection Procedure | Reference |

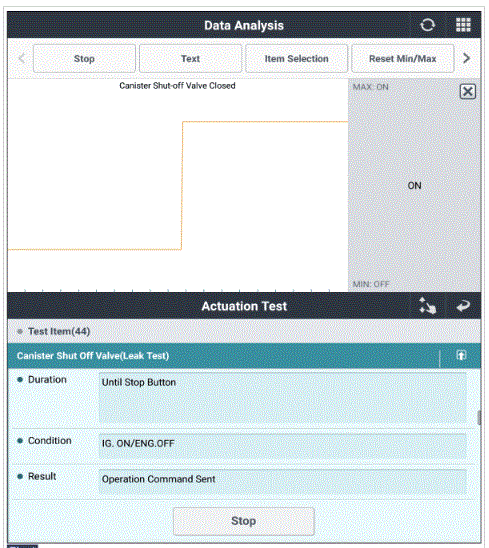

| 1. Ignition "ON". | 1. Connect KDS to "Data Link Connector (DLC)". 2. Perform "Actuation Test" of concerned component with KDS. |
Fig.1 |
Good
• Go to ("Rear Active Purge Pump Sensor Inspection ") procedure.
No Good
• Carefully re-do this troubleshooting guide steps.
• If no problems were found with the circuits or connectors, replace the PCSV and go to ("Verification Of Repair ") procedure.
