Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference

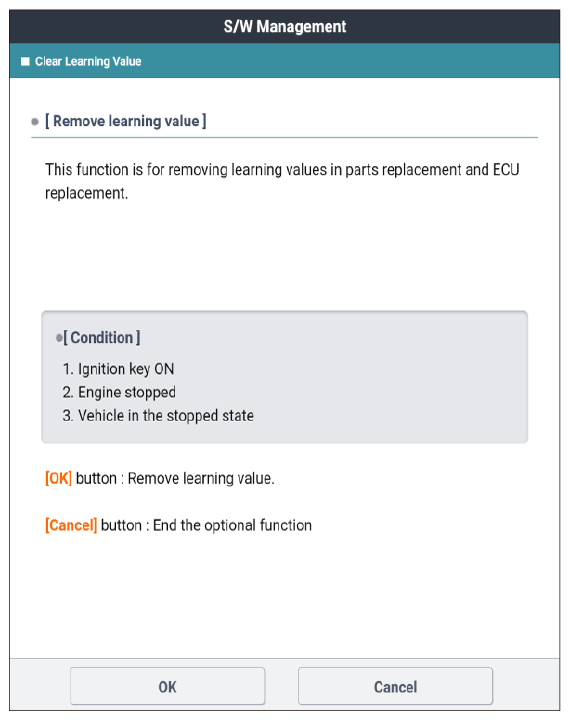

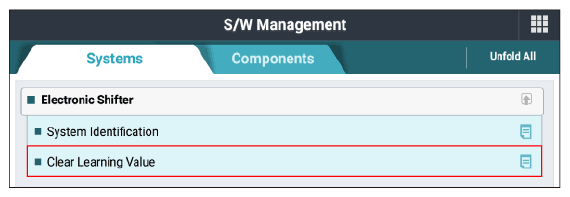

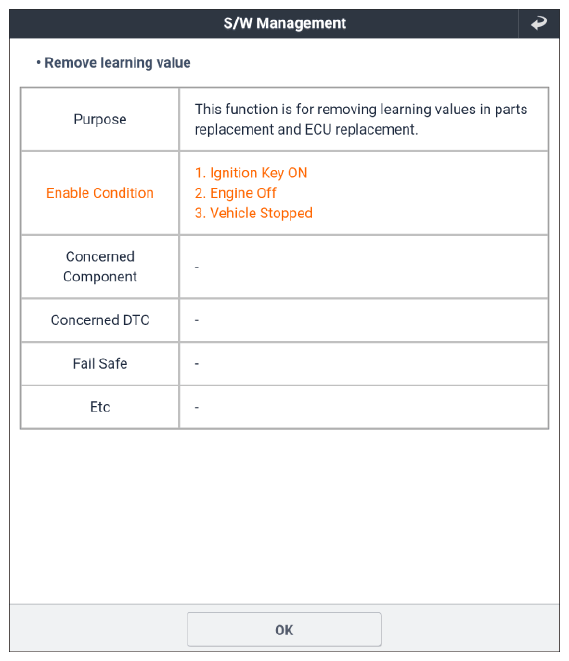

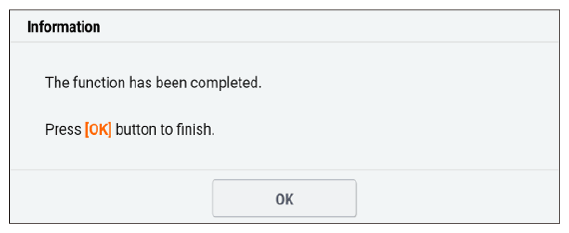

Ignition "ON"	Connect KDS to "Data Link Connector (DLC)". Perform "Vehicle S/W Management" of concerned component with KDS. Select "Clear Learning Value" in "Vehicle S/W management". After operation, perform the "Verification Of Repair " procedure.	Fig.1 to 4

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of auxiliary battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and then go to "Verification Of Repair " procedure.
