Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
E-Shifter ECU connector | 6 (P-CAN high) | E-Shifter ECU connector | 7 (P-CAN low) | Approx. 60Ω |
| E-Shifter ECU connector | 9 (H-CAN high) | E-Shifter ECU connector | 10 (H-CAN low) | Approx. 60Ω | |
| SCU connector | 5 (P-CAN high) | E-Shifter ECU connector | 6 (P-CAN high) | Approx. below 1Ω | |
| SCU connector | 6 (P-CAN low) | E-Shifter ECU connector | 7 (P-CAN low) | Approx. below 1Ω | |
| ICU connector | 17 (P-CAN high) | E-Shifter ECU connector | 6 (P-CAN high) | Approx. below 1Ω | |
| ICU connector | 18 (P-CAN low) | E-Shifter ECU connector | 7 (P-CAN low) | Approx. below 1Ω | |
| HPCU connector | 93 (H-CAN high) | E-Shifter ECU connector | 9 (H-CAN high) | Approx. below 1Ω | |
| HPCU connector | 94 (H-CAN low) | E-Shifter ECU connector | 10 (H-CAN low) | Approx. below 1Ω | |
|
E-Shifter ECU connector | 6 (P-CAN high) | Chassis ground | - | Fig.1 |
| E-Shifter ECU connector | 7 (P-CAN low) | Chassis ground | - | ||
|

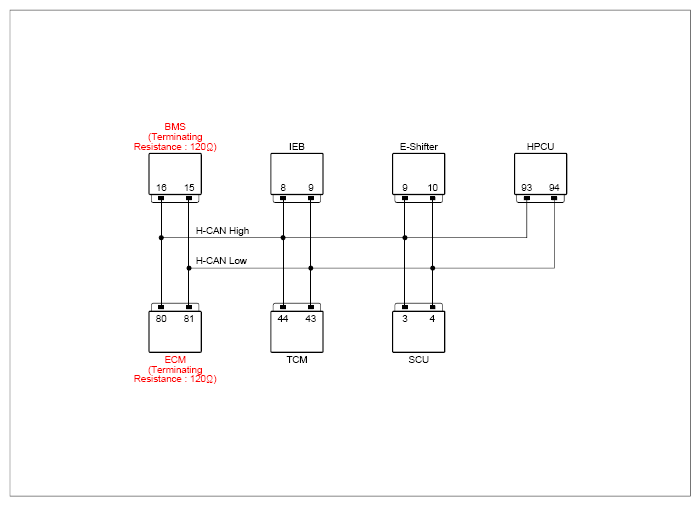

E-Shifter ECU connector | 9 (H-CAN high) | Chassis ground | - | Fig.2 |
| E-Shifter ECU connector | 10 (H-CAN low) | Chassis ground | - | ||
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair as necessary, go to "Verification Of Repair " procedure.
