Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

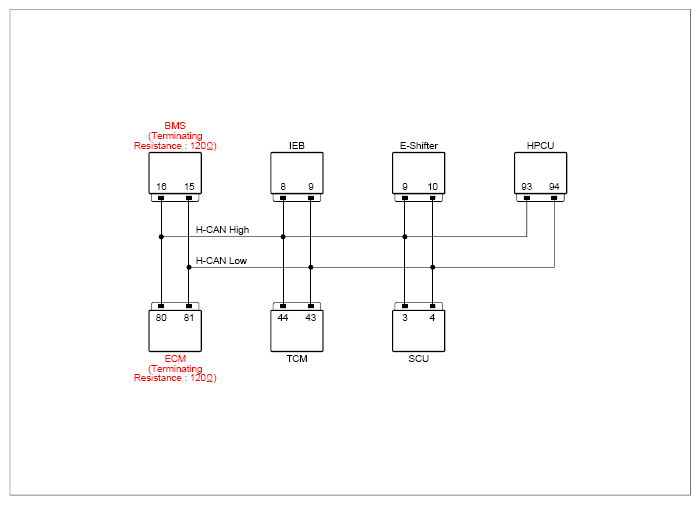

HPCU connector | 93 (H-CAN high) | Chassis ground | - | Fig.1 |
| HPCU connector | 94 (H-CAN low) | Chassis ground | - | ||
|
BMS (component side) | 16 (H-CAN high) | BMS (component side) | 15 (H-CAN low) | Approx. 120Ω |
| ECM (component side) | 80 (H-CAN high) | ECM (component side) | 81 (H-CAN low) | Approx. 120Ω | |
| TCM connector | 44 (H-CAN high) | TCM connector | 43 (H-CAN low) | Approx. 60Ω | |
| HPCU connector | 93 (H-CAN high) | HPCU connector | 94 (H-CAN low) | Approx. 60Ω | |
| HPCU connector | 93 (H-CAN high) | Chassis ground | - | ∞ (infinity)Ω | |
| HPCU connector | 94 (H-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
Good
- Go to "Module Circuit Inspection" procedure.
- Repair as necessary and then Go to "Verification Of Repair " procedure.
No Good
- Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
| Module Circuit Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
HPCU connector | 4, 5, 6 (Memory power) | Chassis ground | - | B+ |
|
HPCU connector | 1, 2, 3 (ground) | Chassis ground | - | Approx. below 1Ω |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then Go to "Verification Of Repair " procedure.
- Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
