Component Location

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

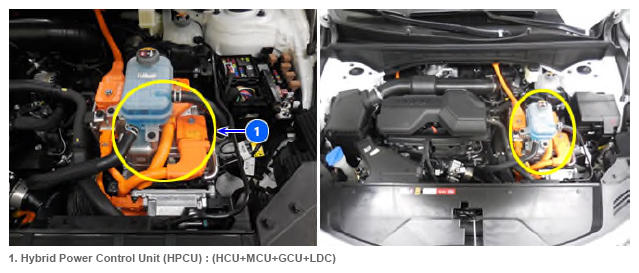

G14966188Courtesy of KIA MOTORS AMERICA, INC.
NOTE: * Hybrid Power Control Unit (HPCU)
* Hybrid Control Unit (HCU)
* Motor Control Unit (MCU)
* Generator Control Unit (GCU)
* Low DC/DC Converter (LDC)
