Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

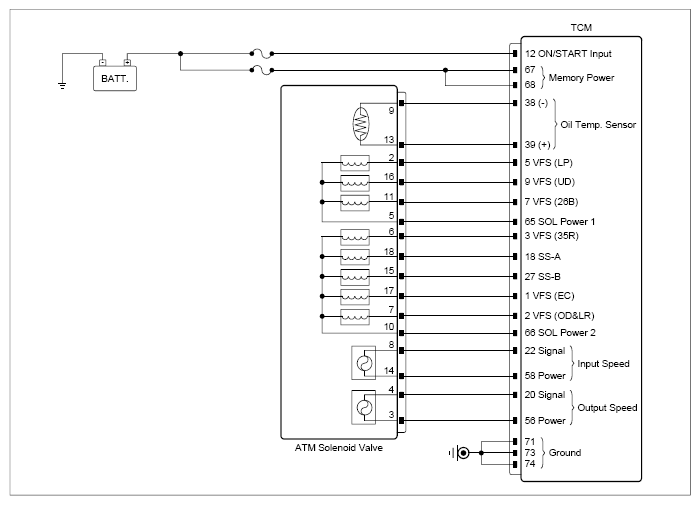

G14966152

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	ATM solenoid valve connector	10 (power)	Chassis ground	-	Approx. 5V
Ignition "OFF". Disconnect the auxiliary battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	ATM solenoid valve connector	17 (EC)	Chassis ground	-	∞ (infinity)Ω
	ATM solenoid valve connector	17 (EC)	TCM connector	1 (EC)	Approx. below 1Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
