Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

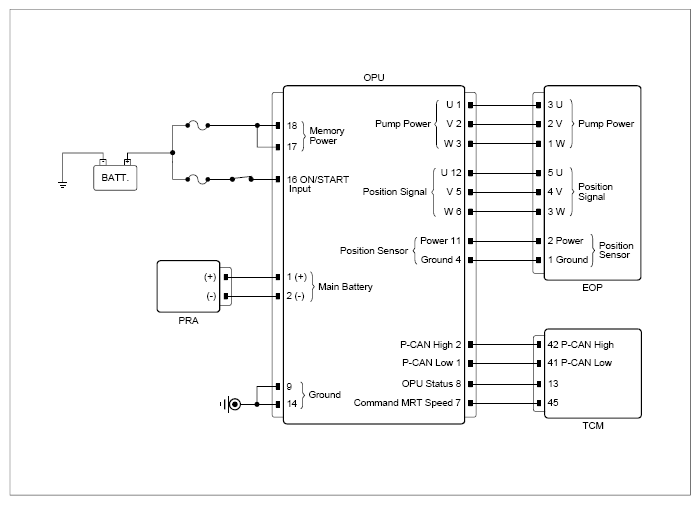

G14966138

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	OPU connector	17, 18 (Memory power)	Chassis ground	-	B+
Ignition "OFF". Disconnect the auxiliary battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	OPU connector	9, 14 (ground)	Chassis ground	-	Approx. below 1Ω
	OPU connector	8 (OPU status)	TCM connector	13 (OPU status)	Approx. below 1Ω
	OPU connector	8 (OPU status)	Chassis ground	-	∞ (infinity)Ω
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	EOP low voltage connector	2 (power)	Chassis ground	-	5V
Ignition "OFF". Disconnect the auxiliary battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	EOP low voltage connector	1 (ground)	Chassis ground	-	Approx. below 1Ω
	EOP low voltage connector	5 (U)	OPU connector	12 (U)	Approx. below 1Ω
	EOP low voltage connector	4 (V)	OPU connector	5 (V)	Approx. below 1Ω
	EOP low voltage connector	3 (W)	OPU connector	6 (W)	∞ (infinity)Ω

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair or replace as necessary and then Go to "Verification Of Repair " procedure.
Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
